Производственная мебель и системы хранения Hoffmann Group 2026 - страница 146

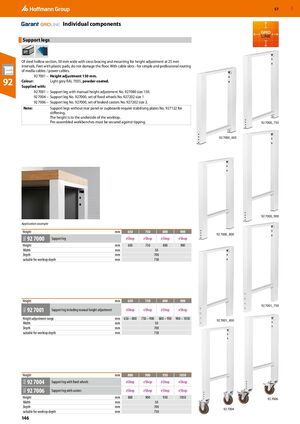

GBP 57 ​ Individual components Support legs ​ Of steel hollow section, 50 mm wide with cross bracing and mounting for height adjustment at 25 mm intervals. Feet with plastic pads, do not damage the floor. With cable slots - for simple and professional routing of media cables / power cables. 92 7001 – Height adjustment 150 mm. 92 Colour: Supplied with: Light grey RAL 7035, powder-coated. 92 7001 – Support leg with manual height adjustment No. 927080 size 150. 92 7004 – Support leg No. 927000, set of fixed wheels No. 927202 size 1 92 7006 – Support leg No. 927000, set of braked castors No. 927202 size 2. Note: Support legs without rear panel or cupboards require stabilising plates No. 927122 for stiffening. The height is to the underside of the worktop. Pre-assembled workbenches must be secured against tipping. 92 7000_750 92 7000_650 92 7000_900 Application example Height mm 650 750 800 900 92 7000_800 92 7000 9GG Support leg eShop eShop eShop eShop Height mm 650 750 800 900 Width mm 50 Depth mm 700 suitable for worktop depth mm 750 Height mm 650 750 800 900 92 7001_750 92 7001 9GG Support leg including manual height adjustment eShop eShop eShop eShop Height adjustment range mm 650 – 800 750 – 900 800 – 950 900 – 1050 92 7001_650 Width mm 50 Depth mm 700 suitable for worktop depth mm 750 Height mm 800 900 950 1050 92 7004 9GG Support leg with fixed wheels eShop eShop eShop eShop 92 7006 9GG Support leg with castors eShop eShop eShop eShop Height mm 800 900 950 1050 92 7006 Width mm 50 Depth mm 700 92 7004 suitable for worktop depth mm 750 146
