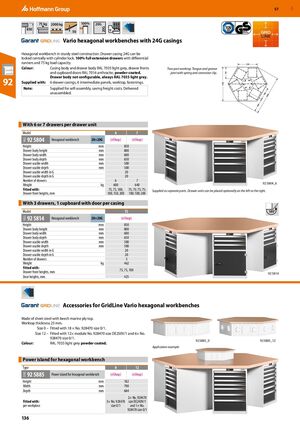

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 136

GBP 57 75 kg 2000 kg 100% 20G 20G 850 50 Vario hexagonal workbenches with 24G casings Hexagonal workbench in sturdy steel construction. Drawer casing 24G can be locked centrally with cylinder lock. 100% full extension drawers with differential runners and 75 kg load capacity. Colour: Casing body and drawer body RAL 7035 light grey, drawer fronts Two-part worktop. Tongue and groove and cupboard doors RAL 7016 anthracite, powder-coated. joint with spring and connector clip. Drawer body not configurable, always RAL 7035 light grey. 92 Supplied with: 6 drawer casings, 6 intermediate panels, worktop, fastenings. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. With 6 or 7 drawers per drawer unit ​ Model 6 7 92 5804 9GG Hexagonal workbench 20×20G (eShop) (eShop) Height mm 850 Drawer body height mm 800 Drawer body width mm 600 Drawer body depth mm 650 Drawer usable width mm 500 Drawer usable depth mm 500 Drawer usable width in G 20 Drawer usable depth in G 20 Number of drawers 6 7 Weight kg 600 640 92 5804_6 Fitted with: 75, 75, 100, 75; 75; 75; 75; Supplied as separate parts. Drawer units can be placed optionally on the left or the right. Drawer front heights, mm 100, 150, 200 100; 100; 200 With 3 drawers, 1 cupboard with door per casing ​ Model T3 180° 92 5814 9GG Hexagonal workbench 20×20G (eShop) Height mm 850 Drawer body height mm 800 Drawer body width mm 600 Drawer body depth mm 650 Drawer usable width mm 500 Drawer usable depth mm 500 Drawer usable width in G 20 Drawer usable depth in G 20 Number of drawers 3 Weight kg 462 Fitted with: 75, 75, 100 Drawer front heights, mm 92 5814 Door heights, mm 425 Accessories for GridLine Vario hexagonal workbenches Made of sheet steel with beech marine ply top. Worktop thickness 25 mm. Size 0 – Fitted with 18 × No. 928470 size 0/1. Size 12 – Fitted with 12× module No. 928470 size DE250V/1 and 6× No. 928470 size 0/1. 92 5885_0 92 5885_12 Colour: RAL 7035 light grey powder coated. Application example Power island for hexagonal workbench ​ Type 0 12 92 5885 91W Power island for hexagonal workbench (eShop) (eShop) Height mm 182 Width mm 790 Depth mm 684 2× No. 928470 Fitted with: 3× No. 928470 size DE240V/1 per workplace size 0/1 and 1× No. 928470 size 0/1 136
