Производственная мебель и системы хранения Hoffmann Group 2026 - страница 123

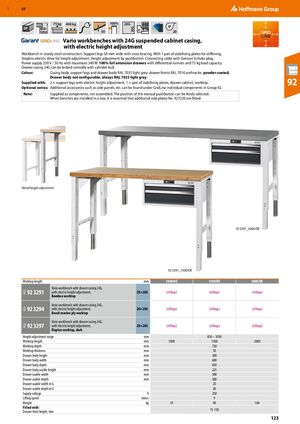

GBP 57 75 kg 400 kg 100% 20G IP 20G 850- 1050 50 20 Vario workbenches with 24G suspended cabinet casing, with electric height adjustment Workbench in sturdy steel construction. Support legs 50 mm wide with cross bracing. With 1 pair of stabilising plates for stiffening. Stepless electric drive for height adjustment. Height adjustment by pushbutton. Connecting cable with German Schuko plug. Power supply 250 V / 50 Hz with maximum 340 W. 100% full extension drawers with differential runners and 75 kg load capacity. Drawer casing 24G can be locked centrally with cylinder lock. Colour: Casing body, support legs and drawer body RAL 7035 light grey, drawer fronts RAL 7016 anthracite, powder-coated. Drawer body not configurable, always RAL 7035 light grey. Supplied with: 2 × support legs with electric height adjustment, 1 × pair of stabilising plates, drawer cabinet, worktop. Optional extras: Additional accessories such as side panels, etc. can be found under GridLine individual components in Group 92. 92 Note: Supplied as components, not assembled. The position of the manual pushbutton can be freely selected. When benches are installed in a row, it is essential that additional side plates No. 927220 are fitted. Detail height adjustment 92 3297_2000/DE 92 3291_1500/DE Worktop length mm 1000/DE 1500/DE 2000/DE Vario workbench with drawer casing 24G, 92 3291 9GG with electric height adjustment, 20×20G (eShop) (eShop) (eShop) Bamboo worktop Vario workbench with drawer casing 24G, 92 3294 9GG with electric height adjustment, 20×20G (eShop) (eShop) (eShop) Beech marine ply worktop Vario workbench with drawer casing 24G, 92 3297 9GG with electric height adjustment, 20×20G (eShop) (eShop) (eShop) Eluplan worktop, dark Height adjustment range mm 850 – 1050 Worktop length mm 1000 1500 2000 Worktop depth mm 750 Worktop thickness mm 50 Drawer body height mm 300 Drawer body width mm 600 Drawer body depth mm 650 Drawer body usable height mm 225 Drawer usable width mm 500 Drawer usable depth mm 500 Drawer usable width in G 20 Drawer usable depth in G 20 Supply voltage V 250 Lifting speed mm/s 9 Weight kg 74 90 104 Fitted with: 75‑150 Drawer front height, mm 123
