Производственная мебель и системы хранения Hoffmann Group 2026 - страница 101

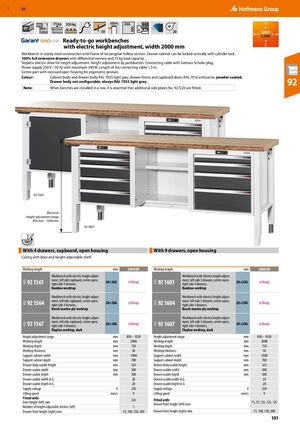

GBP 57 75 kg 350 kg 100% 20G IP 20G 850- 1050 50 20 Ready-to-go workbenches with electric height adjustment, width 2000 mm Workbench in sturdy steel construction with frame of rectangular hollow section. Drawer cabinet can be locked centrally with cylinder lock. 100% full extension drawers with differential runners and 75 kg load capacity. Stepless electric drive for height adjustment. Height adjustment by pushbutton. Connecting cable with German Schuko plug. Power supply 250 V / 50 Hz with maximum 340 W. Length of the connecting cable 1.5 m. Centre part with recessed open housing for ergonomic posture. Colour: Cabinet body and drawer body RAL 7035 light grey, drawer fronts and cupboard doors RAL 7016 anthracite, powder-coated. Note: Drawer body not configurable, always RAL 7035 light grey. When benches are installed in a row, it is essential that additional side plates No. 927220 are fitted. 92 92 1561 Electrical height adjustment range 850 mm – 1050 mm 92 1601 180° With 4 drawers, cupboard, open housing ​ With 9 drawers, open housing ​ Casing with door and height-adjustable shelf. Worktop length mm 2000/DE Worktop length mm 2000/DE Workbench with electric height adjust- Workbench with electric height adjust- ment, left side cupboard, centre open, ment, left side 5 drawers, centre open, 92 1561 92 1601 9GG 9GG 20×20G (eShop) 20×20G (eShop) right side 4 drawers, right side 4 drawers, Bamboo worktop Bamboo worktop Workbench with electric height adjust- Workbench with electric height adjust- ment, left side cupboard, centre open, ment, left side 5 drawers, centre open, 92 1564 92 1604 9GG 9GG 20×20G (eShop) 20×20G (eShop) right side 4 drawers, right side 4 drawers, Beech marine ply worktop Beech marine ply worktop Workbench with electric height adjust- Workbench with electric height adjust- ment, left side cupboard, centre open, ment, left side 5 drawers, centre open, 92 1567 92 1607 9GG 9GG 20×20G (eShop) 20×20G (eShop) right side 4 drawers, right side 4 drawers, Eluplan worktop, dark Eluplan worktop, dark Height adjustment range mm 850 – 1050 Height adjustment range mm 850 – 1050 Worktop length mm 2000 Worktop length mm 2000 Worktop depth mm 750 Worktop depth mm 750 Worktop thickness mm 50 Worktop thickness mm 50 Support cabinet width mm 1900 Support cabinet width mm 1900 Support cabinet depth mm 700 Support cabinet depth mm 700 Drawer body usable height mm 525 Drawer body usable height mm 525 Drawer usable width mm 500 Drawer usable width mm 500 Drawer usable depth mm 500 Drawer usable depth mm 500 Drawer usable width in G 20 Drawer usable width in G 20 Drawer usable depth in G 20 Drawer usable depth in G 20 Supply voltage V 250 Supply voltage V 250 Lifting speed mm/s 9 Lifting speed mm/s 9 Fitted with: Door height (left) mm 525 Fitted with: 75, 75, 125, 125, 125 Drawer front height (left) mm Number of height-adjustable shelves (left) 1 Drawer front height (right) mm 75, 100, 150, 200 Drawer front height (right) mm 75, 100, 150, 200 101
