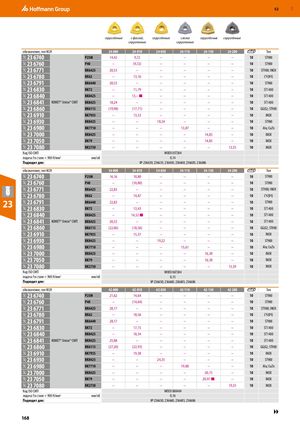

Каталог Hoffmann Group режущий и вспомогательный инструмент - страница 167
Навигация
Каталог Hoffmann Group запасные части, оснастка и СИЗ
Каталог Hoffmann Group ручной и измерительный инструмент
Новые режущие инструменты, производственная мебель и средства защиты Hoffmann Group 2027
Каталог Hoffmann Group токарный инструмент
Производственная мебель и системы хранения Hoffmann Group 2026
скруглённые с фаской, скруглённые слегка скруглённые скруглённые
скругленные скругленные
| обозначение, тип W29 24T 23 6740 | P25M | 24-000 14,42 | 24-010 9,72 | 24-030 – | 24-110 – | 24-130 – | 24-200 – | 10 | Тип ST900 |
| 24T 23 6760 | P40 | – | (9,72) | – | – | – | – | 10 | ST900 |
| 24T 23 6771 T | BK6425 | 20,53 | – | – | – | – | – | 10 | ST900; INOX |
| 24 23 6780 | BK62 | – | 13,16 | – | – | – | – | 10 | СЧ(ВЧ) |
| 24T 23 6791 | BK6440 | 20,53 | – | – | – | – | – | 10 | ST900 |
| 24T 23 6830 | BK72 | – | 11,79 | – | – | – | – | 10 | ST1400 |
| 24T 23 6840 | BK8425 | – | 13,– ■ | – | – | – | – | 10 | ST1400 |
| KOMET® Unisix® СМП 24T 23 6841 | BK8425 | 18,24 | – | – | – | – | – | 10 | ST1400 |
| 24T 23 6860 | BK6115 | (19,98) | (17,71) | – | – | – | – | 10 | GG(G); ST900 |
| 24T 23 6910 | BK7935 | – | 13,53 | – | – | – | – | 10 | INOX |
| 24T 23 6930 | BK8425 | – | – | 18,34 | – | – | – | 10 | ST900 |
| 24T 23 6980 | BK7710 | – | – | – | 13,87 | – | – | 10 | Alu; CuZn |
| 24T 23 7000 | BK8425 | – | – | – | – | 14,85 | – | 10 | INOX |
| 24T 23 7050 | BK79 | – | – | – | – | 14,85 | – | 10 | INOX |
| 24T 23 7080 | BK2730 | – | – | – | – | – | 13,55 | 10 | INOX |
| КодISO СМП | WOEX | 05T304 | |||||||
| подача f в стали < 900 Н/мм2 | мм/об | 0 | ,14 | ||||||
| Подходитдля: | № 236 | 630; 236635; 2366 | 50; 236660; 236685; 2 | 36686 | |||||
| обозначение,тип W29 | 34-000 | 34-010 | 34-030 | 34-110 | 34-130 | 34-200 | Тип | ||
| 24T 23 6740 | P25M | 16,16 | 10,80 | – | – | – | – | 10 | ST900 |
| 24T 23 6760 | P40 | – | (10,80) | – | – | – | – | 10 | ST900 |
| 24T 23 6771 | BK6425 | 22,83 | – | – | – | – | – | 10 | ST900; INOX |
| 24T 23 6780 | BK62 | – | 14,87 | – | – | – | – | 10 | СЧ(ВЧ) |
| 24T 23 6791 | BK6440 | 22,83 | – | – | – | – | – | 10 | ST900 |
| 24T 23 6830 | BK72 | – | 13,43 | – | – | – | – | 10 | ST1400 |
| 24T 23 6840 | BK8425 | – | 14,52 ■ | – | – | – | – | 10 | ST1400 |
| KOMET® Unisix® СМП 24T 23 6841 | BK8425 | 20,53 | – | – | – | – | – | 10 | ST1400 |
| 24T 23 6860 | BK6115 | (22,06) | (18,56) | – | – | – | – | 10 | GG(G); ST900 |
| 24T 23 6910 | BK7935 | – | 15,37 | – | – | – | – | 10 | INOX |
| 24T 23 6930 | BK8425 | – | – | 19,22 | – | – | – | 10 | ST900 |
| 24T 23 6980 | BK7710 | – | – | – | 15,61 | – | – | 10 | Alu; CuZn |
| 24T 23 7000 | BK8425 | – | – | – | – | 16,38 | – | 10 | INOX |
| 24T 23 7050 | BK79 | – | – | – | – | 16,38 | – | 10 | INOX |
| 24T 23 7080 | BK2730 | – | – | – | – | – | 15,39 | 10 | INOX |
| КодISO СМП | WOEX | 06T304 | |||||||
| подача f в стали < 900 Н/мм2 | мм/об | 0 | 15 | ||||||
| Подходитдля: | № 236650; 2366 | , 60; 236685; 236686 | |||||||
| обозначение,тип W29 | 42-000 | 42-010 | 42-030 | 42-110 | 42-130 | 42-200 | Тип | ||
| 24T 23 6740 | P25M | 21,62 | 14,64 | – | – | – | – | 10 | ST900 |
| 24T 23 6760 | P40 | – | (14,64) | – | – | – | – | 10 | ST900 |
| 24T 23 6771 | BK6425 | 28,17 | – | – | – | – | – | 10 | ST900; INOX |
| 24T 23 6780 | BK62 | – | 18,56 | – | – | – | – | 10 | СЧ(ВЧ) |
| 24T 23 6791 | BK6440 | 28,17 | – | – | – | – | – | 10 | ST900 |
| 24T 23 6830 | BK72 | – | 17,15 | – | – | – | – | 10 | ST1400 |
| 24T 23 6840 | BK8425 | – | 18,34 | – | – | – | – | 10 | ST1400 |
| KOMET® Unisix® СМП 24T 23 6841 | BK8425 | 25,88 | – | – | – | – | – | 10 | ST1400 |
| 24T 23 6860 | BK6115 | (27,20) | (22,93) | – | – | – | – | 10 | GG(G); ST900 |
| 24T 23 6910 | BK7935 | – | 19,38 | – | – | – | – | 10 | INOX |
| 24T 23 6930 | BK8425 | – | – | 24,35 | – | – | – | 10 | ST900 |
| 24T 23 6980 | BK7710 | – | – | – | 19,88 | – | – | 10 | Alu; CuZn |
| 24T 23 7000 | BK8425 | – | – | – | – | 20,75 | – | 10 | INOX |
| 24T 23 7050 | BK79 | – | – | – | – | 20,97 ■ | – | 10 | INOX |
| 24T 23 7080 | BK2730 | – | – | – | – | – | 19,33 | 10 | INOX |
| Код ISO СМП | WOE | 080404 | |||||||
| подача f в стали < 900 Н/мм2 Подходит для: | мм/об | 0 № 236650; 2366 | ,16 60; 236685; 236686 |
