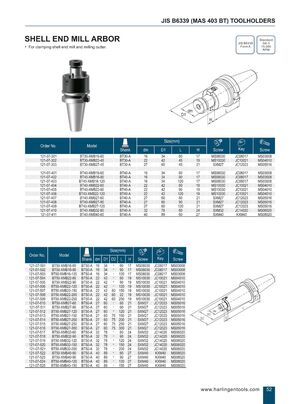

JIS B6339 (MAS 403 BT) ДЕРЖАВКИ ИНСТРУМЕНТА
ОПРАВКА ДЛЯ НАСАДНОЙ ТОРЦЕВОЙ ФРЕЗЫ
JIS B 6339, Form A, Standard G 6.3, 15 000 об/мин
- Для зажима насадной торцевой фрезы и фрезерного инструмента.
| Номер заказа | Модель | Хвостовик | d | dm | L | Размер | Шпонка | Ключ | Винт |
|---|---|---|---|---|---|---|---|---|---|
| 121-07-301 | BT30-XMB16-60 | BT30-A | 16 | 34 | 60 | 17 | MS08030 | JC08017 | MS03008 |
| 121-07-302 | BT30-XMB22-45 | BT30-A | 22 | 42 | 45 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-303 | BT30-XMB27-45 | BT30-A | 27 | 60 | 45 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-401 | BT40-XMB16-60 | BT40-A | 16 | 34 | 60 | 17 | MS08030 | JC08017 | MS03008 |
| 121-07-402 | BT40-XMB16-90 | BT40-A | 16 | 34 | 90 | 17 | MS08030 | JC08017 | MS03008 |
| 121-07-403 | BT40-XMB16-120 | BT40-A | 16 | 34 | 120 | 17 | MS08030 | JC08017 | MS03008 |
| 121-07-404 | BT40-XMB22-60 | BT40-A | 22 | 42 | 60 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-405 | BT40-XMB22-90 | BT40-A | 22 | 42 | 90 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-406 | BT40-XMB22-120 | BT40-A | 22 | 42 | 120 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-407 | BT40-XMB27-60 | BT40-A | 27 | 60 | 60 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-408 | BT40-XMB27-90 | BT40-A | 27 | 60 | 90 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-409 | BT40-XMB27-120 | BT40-A | 27 | 60 | 120 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-410 | BT40-XMB32-60 | BT40-A | 32 | 78 | 60 | 24 | SXM32 | JC14020 | MS06020 |
| 121-07-411 | BT40-XMB40-60 | BT40-A | 40 | 89 | 60 | 27 | SXM40 | KXM40 | MS08020 |
| Номер заказа | Модель | Хвостовик | d | dm | L | Размер | Шпонка | Ключ | Винт |
|---|---|---|---|---|---|---|---|---|---|
| 121-07-501 | BT50-XMB16-60 | BT50-A | 16 | 34 | 60 | 17 | MS08030 | JC08017 | MS03008 |
| 121-07-502 | BT50-XMB16-90 | BT50-A | 16 | 34 | 90 | 17 | MS08030 | JC08017 | MS03008 |
| 121-07-503 | BT50-XMB16-120 | BT50-A | 16 | 34 | 120 | 17 | MS08030 | JC08017 | MS03008 |
| 121-07-504 | BT50-XMB22-60 | BT50-A | 22 | 42 | 60 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-505 | BT50-XMB22-90 | BT50-A | 22 | 42 | 90 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-506 | BT50-XMB22-120 | BT50-A | 22 | 42 | 120 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-507 | BT50-XMB22-150 | BT50-A | 22 | 42 | 150 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-508 | BT50-XMB22-200 | BT50-A | 22 | 42 | 200 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-509 | BT50-XMB22-250 | BT50-A | 22 | 42 | 250 | 19 | MS10030 | JC10021 | MS04010 |
| 121-07-510 | BT50-XMB27-60 | BT50-A | 27 | 60 | 60 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-511 | BT50-XMB27-90 | BT50-A | 27 | 60 | 90 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-512 | BT50-XMB27-120 | BT50-A | 27 | 60 | 120 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-513 | BT50-XMB27-150 | BT50-A | 27 | 60 | 150 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-514 | BT50-XMB27-200 | BT50-A | 27 | 60 | 200 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-515 | BT50-XMB27-250 | BT50-A | 27 | 60 | 250 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-516 | BT50-XMB27-300 | BT50-A | 27 | 60 | 300 | 21 | SXM27 | JC12023 | MS05016 |
| 121-07-517 | BT50-XMB32-60 | BT50-A | 32 | 78 | 60 | 24 | SXM32 | JC14020 | MS06020 |
| 121-07-518 | BT50-XMB32-90 | BT50-A | 32 | 78 | 90 | 24 | SXM32 | JC14020 | MS06020 |
| 121-07-519 | BT50-XMB32-120 | BT50-A | 32 | 78 | 120 | 24 | SXM32 | JC14020 | MS06020 |
| 121-07-520 | BT50-XMB32-150 | BT50-A | 32 | 78 | 150 | 24 | SXM32 | JC14020 | MS06020 |
| 121-07-521 | BT50-XMB32-200 | BT50-A | 32 | 78 | 200 | 24 | SXM32 | JC14020 | MS06020 |
| 121-07-522 | BT50-XMB40-60 | BT50-A | 40 | 89 | 60 | 27 | SXM40 | KXM40 | MS08020 |
| 121-07-523 | BT50-XMB40-90 | BT50-A | 40 | 89 | 90 | 27 | SXM40 | KXM40 | MS08020 |
| 121-07-524 | BT50-XMB40-120 | BT50-A | 40 | 89 | 120 | 27 | SXM40 | KXM40 | MS08020 |
| 121-07-525 | BT50-XMB40-150 | BT50-A | 40 | 89 | 150 | 27 | SXM40 | KXM40 | MS08020 |
