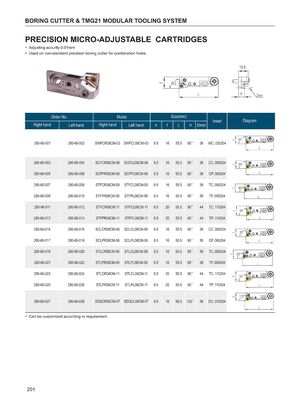

BORING CUTTER & TMG21 MODULAR TOOLING SYSTEM PRECISION MICRO-ADJUSTABLE CARTRIDGES • Adjusting accurity :0.01mm • Used on non-standard precision boring cutter for combination holes. 13.5 i a$. © X) po h L Order No. Dmin Size(mm) Model Diagram Right hand Left hand Right hand Left hand 280-66-001 280-66-002 SWFCR 08CM- 03 SWFCL08CM-03 8.5 16 55.5 90 ° 36 WC..030204 - 90’ i L 280-66-003 280-66-004 SCFCR 08CM-06 SCFCL08CM-06 8.5 16 55.5 90 ° 36 CC..060204 280-66-005 280-66-006 SCFPR08CM-06 SCFPL08CM-06 8.5 16 55.5 90 ° 36 CP .060204 280-66-007 280-66-008 STFCR08CM-09 STFCL08CM-09 8.5 16 55.5 90 ° 36 TC..090204 280-66-009 280-66-010 STFPR08CM-09 STFPL08CM- 09 8.5 16 55.5 90 ° 36 TP..090204 280-66-011 280-66-012 STFCR08CM-11 STFCL08CM-11 8.5 20 55.5 90 ° 44 TC..110204 280-66-013 280-66-014 STFPR08CM-11 STFPL08CM-11 8.5 20 55.5 90 ° 44 TP .110204 280-66-015 280-66-016 SCLCR08CM-06 SCLCL08CM-06 8.5 16 55.5 95 ° 36 CC..060204 - 90* l o -Q o L o L - 90' _[ O SB' 95* 280-66-018 SCLPR08CM-06 SCLPL08CM-06 8.5 16 55.5 95 ° 36 CP .060204 280-66-019 280-66-020 STLCR08CM-09 STLCL08CM- 09 8.5 16 55.5 95 ° 36 TC..090204 280-66-021 280-66-022 STLPR08CM-09 STLPL08CM-09 8.5 16 55.5 95 ° 36 TP..090204 280-66-023 280-66-024 STLCR08CM-11 STLCL08CM-11 8.5 20 55.5 95 ° 44 TC..110204 280-66-025 280-66-026 STLPR08CM-11 STLPL08CM-11 8.5 20 55.5 95 ° 44 TP .110204 280-66-027 280-66-028 SDQCR08CM-07 SDQCL08CM-07 8.5 16 58.5 120 ° 36 DC..070204 L oo I 280-66-017 o L - 95*~ 1 L - 95* I o_o_ ® ^7 0 L - ! x%o o L • Can be customized according to requirement. 201
