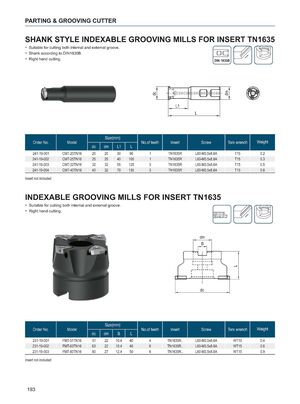

Общий каталог Harlingen 2024 - страница 194

PARTING & GROOVING CUTTER SHANK STYLE INDEXABLE GROOVING MILLS FOR INSERT TN1635 cutting both internal and external groove . according to DIN1835B . • Right hand cutting . • Suitable for DC • Shank DIN 1835 B ® s o " O - 1 L1 L Size (mm) Order No. 241-19-001 241-19-002 241-19-003 241-19 -004 No .of teeth CMT-20TN 16 CMT-25TN16 CMT-32TN16 CMT-40TN16 Insert Screw Torx wrench Weight TN1635R TN1635R TN1635R TN1635R L60-M3.5x8.8A L60-M3.5x8.8A L60-M3.5x8.8A L60-M3.5x8.8A T15 T15 T15 T15 0.2 0.3 0.5 0.8 Insert not included INDEXABLE GROOVING MILLS FOR INSERT TN1635 • Suitable for cutting both internal and external groove . • Right hand cutting . iUTn dm B =-=' C I I t- i r ;:x i i i J- - s ”~ i i ni i N -L_r dc Size (mm) Order No. Model No .of teeth Insert Screw Torx wrench Weight 4 6 6 TN1635R .. TN1635R .. TN1635R .. L60-M3.5x8.8A L60-M3.5x8.8A L60-M3.5x8.8A WT15 WT15 WT15 0.4 0.6 0.9 B 231-19-001 231-19-002 231-19-003 Insert not included 193 FMT- 51TN16 FMT-63TN16 FMT- 80 TN16 10.4 10.4 12.4
