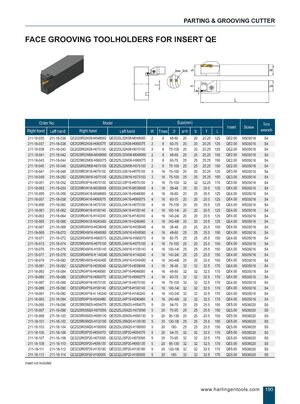

Общий каталог Harlingen 2024 - страница 191
Навигация
Каталог Harlingen самоцентрирующиеся тиски и системы нулевого базирования
Каталог Harlingen системы нулевого базирования
Каталог Harlingen инструмент для пресс-форм 2024
Каталог Harlingen PSC-оправки (CAPTO совместимые)
Каталог Harlingen статические держатели режущих инструментов блочного типа
ОТРЕЗНОЙ И КАНАВОЧНЫЙ ИНСТРУМЕНТ
ДЕРЖАВКИ ДЛЯ ТОРЦЕВОГО ПРОРЕЗАНИЯ КАНАВОК ПОД ПЛАСТИНУ QE
| Номер заказа | Модель | Размер (мм) | Пластина | Винт | Ключ Torx | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Правое исполнение | Левое исполнение | Правое исполнение | Левое исполнение | Tmax | a=h | L | ||||||
| 211-18-035 | 211-18-036 | QE2020R02K08-M048060 | QE2020L02K08-M048060 | 2 | 8 | 48-60 | 20 | 20 | 20.25 | 125 | QE2.00 | MS05016 |
| 211-18-037 | 211-18-038 | QE2020R02K08-H060075 | QE2020L02K08-H060075 | 2 | 8 | 60-75 | 20 | 20 | 20.25 | 125 | QE2.00 | MS05016 |
| 211-18-039 | 211-18-040 | QE2020R02K08-H075100 | QE2020L02K08-H075100 | 2 | 8 | 75-100 | 20 | 20 | 20.25 | 125 | QE2.00 | MS05016 |
| 211-18-041 | 211-18-042 | QE2525R02M08-M048060 | QE2525L02M08-M048060 | 2 | 8 | 48-60 | 25 | 25 | 25.25 | 150 | QE2.00 | MS05016 |
| 211-18-043 | 211-18-044 | QE2525R02M08-H060075 | QE2525L02M08-H060075 | 2 | 8 | 60-75 | 25 | 25 | 25.25 | 150 | QE2.00 | MS05016 |
| 211-18-045 | 211-18-046 | QE2525R02M08-H075100 | QE2525L02M08-H075100 | 2 | 8 | 75-100 | 25 | 25 | 25.25 | 150 | QE2.00 | MS05016 |
| 211-18-047 | 211-18-048 | QE2020R03K16-H075100 | QE2020L03K16-H075100 | 3 | 16 | 75-100 | 20 | 20 | 20.25 | 125 | QE3.00 | MS05016 |
| 211-18-049 | 211-18-050 | QE2525R03M16-H075100 | QE2525L03M16-H075100 | 3 | 16 | 75-100 | 25 | 25 | 25.25 | 150 | QE3.00 | MS05016 |
| 211-18-051 | 211-18-052 | QE3232R03P16-H075100 | QE3232L03P16-H075100 | 3 | 16 | 75-100 | 32 | 32 | 32.25 | 170 | QE3.00 | MS05016 |
| 211-18-053 | 211-18-054 | QE2020R04K16-M038048 | QE2020L04K16-M038048 | 4 | 16 | 38-48 | 20 | 20 | 20.5 | 125 | QE4.00 | MS05016 |
| 211-18-055 | 211-18-056 | QE2020R04K16-M048060 | QE2020L04K16-H048060 | 4 | 16 | 48-60 | 20 | 20 | 20.5 | 125 | QE4.00 | MS05016 |
| 211-18-057 | 211-18-058 | QE2020R04K16-H060075 | QE2020L04K16-H060075 | 4 | 16 | 60-75 | 20 | 20 | 20.5 | 125 | QE4.00 | MS05016 |
| 211-18-059 | 211-18-060 | QE2020R04K16-H075100 | QE2020L04K16-H075100 | 4 | 16 | 75-100 | 20 | 20 | 20.5 | 125 | QE4.00 | MS05016 |
| 211-18-061 | 211-18-062 | QE2020R04K16-H100140 | QE2020L04K16-H100140 | 4 | 16 | 100-140 | 20 | 20 | 20.5 | 125 | QE4.00 | MS05016 |
| 211-18-063 | 211-18-064 | QE2020R04K16-H140240 | QE2020L04K16-H140240 | 4 | 16 | 140-240 | 20 | 20 | 20.5 | 125 | QE4.00 | MS05016 |
| 211-18-065 | 211-18-066 | QE2020R04K16-M240480 | QE2020L04K16-H240480 | 4 | 16 | 240-480 | 20 | 20 | 20.5 | 125 | QE4.00 | MS05016 |
| 211-18-067 | 211-18-068 | QE2525R04M16-H038048 | QE2525L04M16-H038048 | 4 | 16 | 38-48 | 25 | 25 | 25.5 | 150 | QE4.00 | MS05016 |
| 211-18-069 | 211-18-070 | QE2525R04M16-H048060 | QE2525L04M16-H048060 | 4 | 16 | 48-60 | 25 | 25 | 25.5 | 150 | QE4.00 | MS05016 |
| 211-18-071 | 211-18-072 | QE2525R04M16-H060075 | QE2525L04M16-H060075 | 4 | 16 | 60-75 | 25 | 25 | 25.5 | 150 | QE4.00 | MS05016 |
| 211-18-073 | 211-18-074 | QE2525R04M16-H075100 | QE2525L04M16-H075100 | 4 | 16 | 75-100 | 25 | 25 | 25.5 | 150 | QE4.00 | MS05016 |
| 211-18-075 | 211-18-076 | QE2525R04M16-H100140 | QE2525L04M16-H100140 | 4 | 16 | 100-140 | 25 | 25 | 25.5 | 150 | QE4.00 | MS05016 |
| 211-18-077 | 211-18-078 | QE2525R04M16-H140240 | QE2525L04M16-H140240 | 4 | 16 | 140-240 | 25 | 25 | 25.5 | 150 | QE4.00 | MS05016 |
| 211-18-079 | 211-18-080 | QE2525R04M16-H240480 | QE2525L04M16-H240480 | 4 | 16 | 240-480 | 25 | 25 | 25.5 | 150 | QE4.00 | MS05016 |
| 211-18-081 | 211-18-082 | QE3232R04P16-H038048 | QE3232L04P16-H038048 | 4 | 16 | 38-48 | 32 | 32 | 32.5 | 170 | QE4.00 | MS05016 |
| 211-18-083 | 211-18-084 | QE3232R04P16-H048060 | QE3232L04P16-H048060 | 4 | 16 | 48-60 | 32 | 32 | 32.5 | 170 | QE4.00 | MS05016 |
| 211-18-085 | 211-18-086 | QE3232R04P16-H060075 | QE3232L04P16-H060075 | 4 | 16 | 60-75 | 32 | 32 | 32.5 | 170 | QE4.00 | MS05016 |
| 211-18-087 | 211-18-088 | QE3232R04P16-H075100 | QE3232L04P16-H075100 | 4 | 16 | 75-100 | 32 | 32 | 32.5 | 170 | QE4.00 | MS05016 |
| 211-18-089 | 211-18-090 | QE3232R04P16-H100140 | QE3232L04P16-H100140 | 4 | 16 | 100-140 | 32 | 32 | 32.5 | 170 | QE4.00 | MS05016 |
| 211-18-091 | 211-18-092 | QE3232R04P16-H140240 | QE3232L04P16-H140240 | 4 | 16 | 140-240 | 32 | 32 | 32.5 | 170 | QE4.00 | MS05016 |
| 211-18-093 | 211-18-094 | QE3232R04P16-H240480 | QE3232L04P16-H240480 | 4 | 16 | 240-480 | 32 | 32 | 32.5 | 170 | QE4.00 | MS05016 |
| 211-18-095 | 211-18-096 | QE2525R05M20-H054070 | QE2525L05M20-H054070 | 5 | 20 | 54-70 | 25 | 25 | 25.5 | 150 | QE5.00 | MS06020 |
| 211-18-097 | 211-18-098 | QE2525R05M20-H070095 | QE2525L05M20-H070095 | 5 | 20 | 70-95 | 25 | 25 | 25.5 | 150 | QE5.00 | MS06020 |
| 211-18-099 | 211-18-100 | QE2525R05M20-H095130 | QE2525L05M20-H095130 | 5 | 20 | 95-130 | 25 | 25 | 25.5 | 150 | QE5.00 | MS06020 |
| 211-18-101 | 211-18-102 | QE2525R05M20-H130180 | QE2525L05M20-H130180 | 5 | 20 | 130-180 | 25 | 25 | 25.5 | 150 | QE5.00 | MS06020 |
| 211-18-103 | 211-18-104 | QE2525R05M20-H180000 | QE2525L05M20-H180000 | 5 | 20 | 180- | 25 | 25 | 25.5 | 150 | QE5.00 | MS06020 |
| 211-18-105 | 211-18-106 | QE3232R05P20-H054070 | QE3232L05P20-H054070 | 5 | 20 | 54-70 | 32 | 32 | 32.5 | 170 | QE5.00 | MS06020 |
| 211-18-107 | 211-18-108 | QE3232R05P20-H070095 | QE3232L05P20-H070095 | 5 | 20 | 70-95 | 32 | 32 | 32.5 | 170 | QE5.00 | MS06020 |
| 211-18-109 | 211-18-110 | QE3232R05P20-H095130 | QE3232L05P20-H095130 | 5 | 20 | 95-130 | 32 | 32 | 32.5 | 170 | QE5.00 | MS06020 |
| 211-18-111 | 211-18-112 | QE3232R05P20-H130180 | QE3232L05P20-H130180 | 5 | 20 | 130-180 | 32 | 32 | 32.5 | 170 | QE5.00 | MS06020 |
| 211-18-113 | 211-18-114 | QE3232R05P20-H180000 | QE3232L05P20-H180000 | 5 | 20 | 180- | 32 | 32 | 32.5 | 170 | QE5.00 | MS06020 |
Пластина не входит в комплект.
