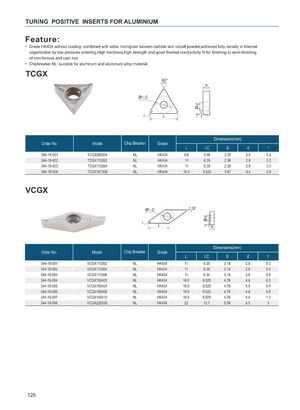

TURING POSITIVE INSERTS FOR ALUMINIUM Feature : • Grade HK 434 without coating: combined with extra micrograin tunsten carbide and cobalt powder,achieved fully density in internal organization by low pressure sintering.High hardness ,high strength and good thermal conductivity fit for finishing to semi-finishing of non-ferrous and cast iron. • Chipbreaker NL [ suitable for aluminum and aluminum alloy material. TCGX 60° s 01. C " O Q \ r ^ 7° L \ Dimensions(mm) Order No. Model 344-18-001 344-18-002 344-18-003 344-18-004 TCGX090204 TCGX110202 TCGX110204 TCGX16T308 Chip Breaker NL NL NL NL Grade r I.C HK434 HK434 HK434 HK434 5.56 6.35 6.35 9.525 2.38 2.38 2.38 3.97 2.5 2.8 2.8 4.4 0.2 0.2 0.4 0.8 VCGX ^35° 0 I.C \ r -o -. 1 \ L ^s 7° Dimensions(mm) 125 Order No. Model Chip Breaker 344-19-001 344-19-002 344-19-003 344-19-004 344-19-005 344-19-006 344-19-007 344-19-008 VCGX110302 VCGX110304 VCGX110308 VCGX160402 VCGX160404 VCGX160408 VCGX160412 VCGX 220530 NL NL NL NL NL NL NL NL Grade HK434 HK434 HK434 HK434 HK434 HK434 HK434 HK434 r I.C 16.6 16.6 16.6 16.6 22 6.35 6.35 6.35 9.525 9.525 9.525 9.525 12.7 3.18 3.18 3.18 4.76 4.76 4.76 4.76 5.56 2.8 2.8 2.8 4.4 4.4 4.4 0.2 0.4 0.8 0.2 0.4 0.8 4.4 5.5 1.2 3
