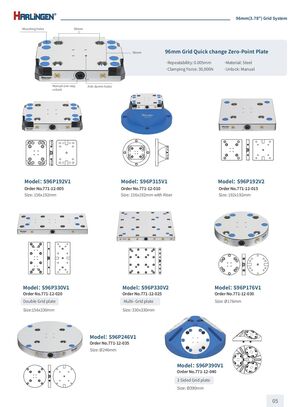

96mm(3.78") Grid System 96mm Mounting holes 96mm 96mm Grid Quick change Zero-Point Plate ·Repeatability: 0.005mm ·Material: Steel ·Clamping Force: 30,000N Manual one-way unlock ·Unlock: Manual Anti-dumm holes Model：S96P192V1 Order No.771-12-005 Model：S96P315V1 Model：S96P192V2 Size: 156x192mm with Riser Size: 192x192mm Order No.771-12-010 Size: 156x192mm Model：S96P330V1 Order No.771-12-015 Model：S96P330V2 Order No.771-12-020 Order No.771-12-025 Size:156x330mm Size: 330x330mm Double Grid plate Model：S96P176V1 Order No.771-12-030 Multi- Grid plate Size: Ø176mm Model：S96P246V1 Order No.771-12-035 Size: Ø246mm Model：S96P390V1 Order No.771-12-040 3 Sided Grid plate Size: Ø390mm 05
