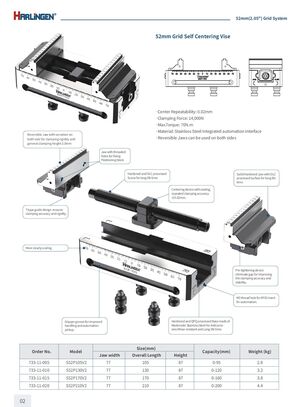

52mm(2.05") Grid System 52mm Grid Self Centering Vise ·Center Repeatability: 0.02mm ·Clamping Force: 14,000N Reversible Jaw with serration on both side for clamping rigidity and general clamping height 3.0mm ·Max.Torque: 70N.m ·Material: Stainless Steel Integrated automation interface ·Reversible Jaws can be used on both sides Jaw with threaded holes for fixing Positioning block Hardened and DLC processed Screw for long life time Solid Hardened Jaw with DLC processed surface for long life time Centering device with sealing, repeated clamping accuracy 士0.02mm. T-type guide design ensures clamping accuracy and rigidity. More clearly scaling. Pre-tightening device eliminate gap for improving the clamping accuracy and stability. M5 thread hole for RFID insert for automation. Hardened and QPQ processed Base made of Martensitic Stainless Steel for Anticorrosion/Wear-resistant and Long life time. Gripper groove for improved handling and automation pickup. Order No. 733-11-005 S52P105V2 733-11-015 S52P170V2 733-11-010 733-11-020 02 Model S52P130V2 S52P210V2 Size(mm) Capacity(mm) Weight (kg) 87 0-120 3.2 87 0-200 Jaw width Overall Length Height 77 130 77 77 77 105 170 210 87 87 0-95 0-160 2.8 3.8 4.4
