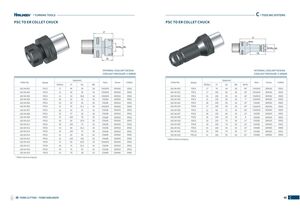

PSC TO ER COLLET CHUCK
INTERNAL COOLANT DESIGN
COOLANT PRESSURE 80 BAR
| Order No. | Shank | DCONws | LF | LB1 | BD | Nuts | Screw | Collets |
|---|---|---|---|---|---|---|---|---|
| 182 04 001 | PSC3 | 17 | 45 | 29 | 28 | CN16HS | SER16C | ER16 |
| 182-04-002 | PSC3 | 21 | 45 | 30 | 34 | CN20HS | SER20C | ER20 |
| 182-04-003 | PSC4 | 21 | 52 | 30.8 | 34 | CN20HS | SER20C | ER20 |
| 182-04-004 | PSC4 | 26 | 52 | 32 | 42 | CN25B | SER25C | ER25 |
| 182-04-005 | PSC4 | 33 | 54 | 34 | 50 | CN32B | SER32C | ER32 |
| 182-04-006 | PSC5 | 21 | 55 | 31.1 | 34 | CN20HS | SER20C | ER20 |
| 182-04-007 | PSC5 | 26 | 55 | 33 | 42 | CN25B | SER25C | ER25 |
| 182-04-008 | PSC5 | 33 | 57 | 35 | 50 | CN32B | SER32C | ER32 |
| 182-04-009 | PSC5 | 33 | 100 | 78 | 50 | CN32B | SER32C | ER32 |
| 182-04-010 | PSC6 | 26 | 60 | 32.9 | 50 | CN25B | SER25C | ER25 |
| 182-04-011 | PSC6 | 26 | 100 | 75 | 42 | CN25B | SER25C | ER25 |
| 182-04-012 | PSC6 | 33 | 60 | 35.3 | 50 | CN32B | SER32C | ER32 |
| 182-04-013 | PSC6 | 33 | 100 | 75 | 50 | CN32B | SER32C | ER32 |
| 182-04-014 | PSC6 | 41 | 65 | 40 | 63 | CN40B | SER40C | ER40 |
| 182-04-015 | PSC6 | 41 | 130 | 105 | 63 | CN40B | SER40C | ER40 |
| 182-04-016 | PSC8 | 21 | 65 | 29.9 | 35 | CN20HS | SER20C | ER20 |
| 182-04-017 | PSC8 | 26 | 70 | 32.4 | 42 | CN25B | SER25C | ER25 |
| 182-04-018 | PSC8 | 33 | 70 | 35 | 50 | CN32B | SER32C | ER32 |
| 182-04-019 | PSC8 | 41 | 70 | 38 | 63 | CN40B | SER40C | ER40 |
*Другие размеры по запросу.
PSC TO ER COLLET CHUCK
INTERNAL COOLANT DESIGN
COOLANT PRESSURE 80 BAR
| Order No. | Shank | DCONws | LF | LB1 | BD1 | BHTA1 | Nuts | Screw | Collets |
|---|---|---|---|---|---|---|---|---|---|
| 182-04-020 | PSC4 | 17 | 70 | 44 | 28 | 45° | CN16HS | SER16C | ER16 |
| 182-04-021 | PSC5 | 17 | 100 | 60 | 28 | 29° | CN16HS | SER16C | ER16 |
| 182-04-022 | PSC5 | 21 | 100 | 55 | 34 | 16° | CN20HS | SER20C | ER20 |
| 182-04-023 | PSC5 | 21 | 130 | 55 | 34 | 7° | CN20HS | SER20C | ER20 |
| 182-04-024 | PSC5 | 26 | 100 | 65 | 42 | 14° | CN25B | SER25C | ER25 |
| 182-04-025 | PSC6 | 17 | 100 | 60 | 28 | 44° | CN16HS | SER16C | ER16 |
| 182-04-026 | PSC6 | 21 | 60 | 31 | 34 | 65° | CN20HS | SER20C | ER20 |
| 182-04-027 | PSC6 | 26 | 130 | 65 | 42 | 13° | CN25B | SER25C | ER25 |
| 182-04-028 | PSC6 | 26 | 160 | 65 | 42 | CN25B | SER25C | ER25 | |
| 182-04-029 | PSC6 | 33 | 130 | 75 | 50 | 11° | CN32B | SER32C | ER32 |
| 182-04-030 | PSC8 | 33 | 160 | 75 | 50 | 15° | CN32B | SER32C | ER32 |
| 182-04-031 | PSC8 | 41 | 160 | 95 | 63 | 13° | CN40B | SER40C | ER40 |
| 182-04-032 | PSC10 | 33 | 160 | 75 | 50 | 27° | CN32B | SER32C | ER32 |
| 182-04-033 | PSC10 | 41 | 160 | 95 | 63 | 32° | CN40B | SER40C | ER40 |
*Другие размеры по запросу.
