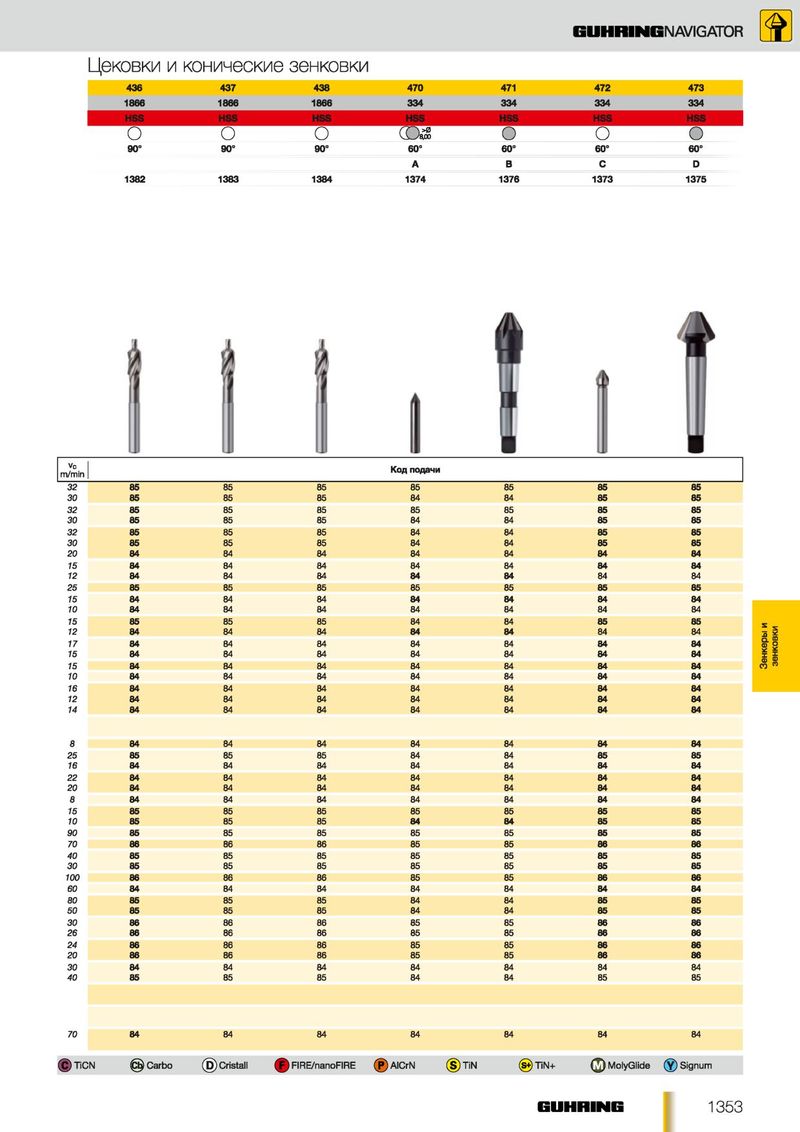

Цековки и конические зенковки
| 436 | 437 | 438 | 470 | 471 | 472 | 473 |
| 1866 | 1866 | 1866 | 334 | 334 | 334 | 334 |
| О | О | О | СОадо | О | О | О |
| 90° | 90° | 90° | О) О | О) о | 60° | 60° |
| А | в | С | D | |||
| 1382 | 1383 | 1384 | 1374 | 1376 | 1373 | 1375 |
| vc m/min | Код подачи | ||||
| 32 | 85 | 85 | 85 | 85 85 85 | 85 |
| 30 | 85 | 85 | 85 | 84 84 85 | 85 |
| 32 | 85 | 85 | 85 | 85 85 85 | 85 |
| 30 | 85 | 85 | 85 | 84 84 85 | 85 |
| 32 | 85 | 85 | 85 | 84 84 85 | 85 |
| 30 | 85 | 85 | 85 | 84 84 85 | 85 |
| 20 | 84 | 84 | 84 | 84 84 84 | 84 |
| 15 | 84 | 84 | 84 | 84 84 84 | 84 |
| 12 | 84 | 84 | 84 | 84 84 84 | 84 |
| 25 | 85 | 85 | 85 | 85 85 85 | 85 |
| 15 | 84 | 84 | 84 | 84 84 84 | 84 |
| 10 | 84 | 84 | 84 | 84 84 84 | 84 |
| 15 | 85 | 85 | 85 | 84 84 85 | 85 |
| 12 | 84 | 84 | 84 | 84 84 84 | 84 |
| 17 | 84 | 84 | 84 | 84 84 84 | 84 |
| 15 | 84 | 84 | 84 | 84 84 84 | 84 |
| 15 | 84 | 84 | 84 | 84 84 84 | 84 |
| 10 | 84 | 84 | 84 | 84 84 84 | 84 |
| 16 | 84 | 84 | 84 | 84 84 84 | 84 |
| 12 | 84 | 84 | 84 | 84 84 84 | 84 |
| 14 | 84 | 84 | 84 | 84 84 84 | 84 |
| 8 | 84 | 84 | 84 | 84 84 84 | 84 |
| 25 | 85 | 85 | 85 | 84 84 85 | 85 |
| 16 | 84 | 84 | 84 | 84 84 84 | 84 |
| 22 | 84 | 84 | 84 | 84 84 84 | 84 |
| 20 | 84 | 84 | 84 | 84 84 84 | 84 |
| 8 | 84 | 84 | 84 | 84 84 84 | 84 |
| 15 | 85 | 85 | 85 | 85 85 85 | 85 |
| 10 | 85 | 85 | 85 | 84 84 85 | 85 |
| 90 | 85 | 85 | 85 | 85 85 85 | 85 |
| 70 | 86 | 86 | 86 | 85 85 86 | 86 |
| 40 | 85 | 85 | 85 | 85 85 85 | 85 |
| 30 | 85 | 85 | 85 | 85 85 85 | 85 |
| 100 | 86 | 86 | 86 | 85 85 86 | 86 |
| 60 | 84 | 84 | 84 | 84 84 84 | 84 |
| 80 | 85 | 85 | 85 | 84 84 85 | 85 |
| 50 | 85 | 85 | 85 | 84 84 85 | 85 |
| 30 | 86 | 86 | 86 | 85 85 86 | 86 |
| 26 | 86 | 86 | 86 | 85 85 86 | 86 |
| 24 | 86 | 86 | 86 | 85 85 86 | 86 |
| 20 | 86 | 86 | 86 | 85 85 86 | 86 |
| 30 | 84 | 84 | 84 | 84 84 84 | 84 |
| 40 | 85 | 85 | 85 | 84 84 85 | 85 |
| 70 | 84 | 84 | 84 | 84 84 84 | 84 |
| ®TiCN | @ Carbo | (D)Cristall | 0 FIRE/nanoFIRE | 0 A IC rN 0 T iN @ TiN + Qj)MolyGl | ide ® Signum |
