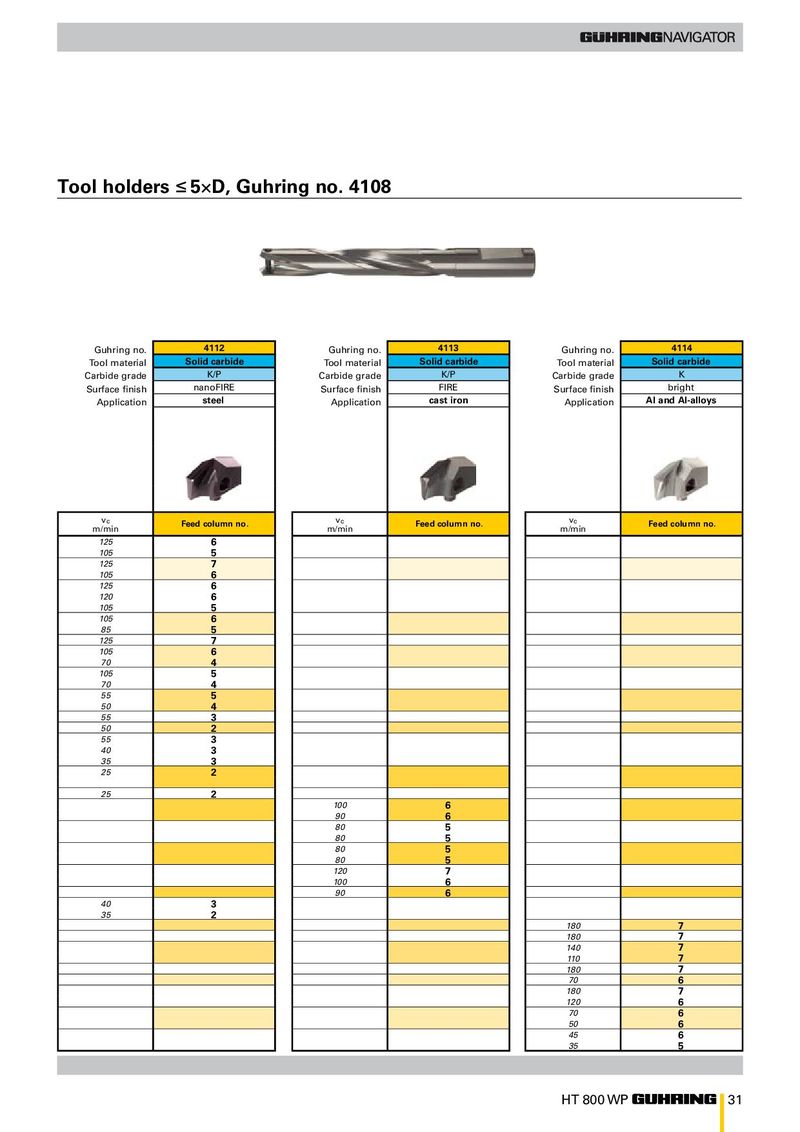

Tool holders ≤ 5×D, Guhring no. 4108
| Guhring no. | 4112 | Guhring no. | 4113 | Guhring no. | 4114 | ||||||
| Tool material | Solid carbide | Tool material | Solid carbide | Tool material | Solid carbide | ||||||
| Carbide grade | K/P | Carbide grade | K/P | Carbide grade | K | ||||||
| Surface finish | nanoFIRE | Surface finish | FIRE | Surface finish | bright | ||||||
| Application | steel | Application | cast iron | Application | Al and Al-alloys |
v c Feed column no. m/min
| 125 | 6 |
| 105 | 5 |
| 125 | 7 |
| 105 | 6 |
| 125 | 6 |
| 120 | 6 |
| 105 | 5 |
| 105 | 6 |
| 85 | 5 |
| 125 | 7 |
| 105 | 6 |
| 70 | 4 |
| 105 | 5 |
| 70 | 4 |
| 55 | 5 |
| 50 | 4 |
| 55 | 3 |
| 50 | 2 |
| 55 | 3 |
| 40 | 3 |
| 35 | 3 |
| 25 | 2 |
| 25 | 2 |
| 40 | 3 |
| 35 | 2 |
vc Feed column no. m/min
| 100 | 6 |
| 90 | 6 |
| 80 | 5 |
| 80 | 5 |
| 80 | 5 |
| 80 | 5 |
| 120 | 7 |
| 100 | 6 |
| 90 | 6 |
vc Feed column no. m/min
| 180 | 7 |
| 180 | 7 |
| 140 | 7 |
| 110 | 7 |
| 180 | 7 |
| 70 | 6 |
| 180 | 7 |
| 120 | 6 |
| 70 | 6 |
