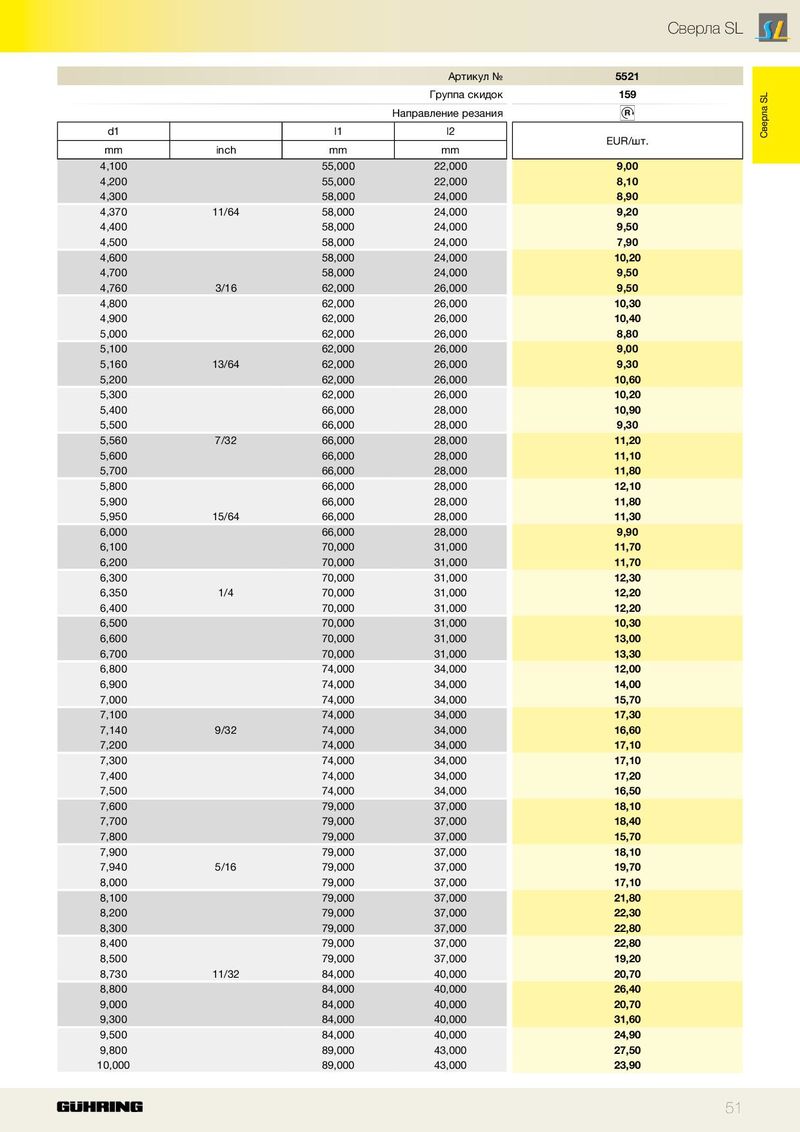

Каталог Guhring высокопроизводительный инструмент по отличной цене SuperLine - страница 51
Навигация
Каталог Guhring пластины PKD и CBN
Каталог Guhring специализированные сверла для труднообрабатываемых материалов RF 100 HF
Каталог Guhring программа фрез высочайшего качества PowerMill
Каталог Guhring фрезерный инструмент
Каталог Guhring инструментальная оснастка
Каталог Guhring сверла со сменными пластинами
| Артикул № Группа скидок | 5521 159 | |||
| Направление резания | R | |||
| d1 | l1 | l2 | EUR/шт | |
| mm | inch | mm | mm | . |
| 4,100 | 55,000 | 22,000 | 9,00 | |
| 4,200 | 55,000 | 22,000 | 8,10 | |
| 4,300 | 58,000 | 24,000 | 8,90 | |
| 4,370 | 11/64 | 58,000 | 24,000 | 9,20 |
| 4,400 | 58,000 | 24,000 | 9,50 | |
| 4,500 | 58,000 | 24,000 | 7,90 | |
| 4,600 | 58,000 | 24,000 | 10,20 | |
| 4,700 | 58,000 | 24,000 | 9,50 | |
| 4,760 | 3/16 | 62,000 | 26,000 | 9,50 |
| 4,800 | 62,000 | 26,000 | 10,30 | |
| 4,900 | 62,000 | 26,000 | 10,40 | |
| 5000 | 62000 | 26000 | 880 | |
| , 5,100 | , 62,000 | , 26,000 | , 9,00 | |
| 5,160 | 13/64 | 62,000 | 26,000 | 9,30 |
| 5,200 | 62,000 | 26,000 | 10,60 | |
| 5,300 | 62,000 | 26,000 | 10,20 | |
| 5,400 | 66,000 | 28,000 | 10,90 | |
| 5,500 | 66,000 | 28,000 | 9,30 | |
| 5,560 | 7/32 | 66,000 | 28,000 | 11,20 |
| 5,600 | 66,000 | 28,000 | 11,10 | |
| 5,700 | 66,000 | 28,000 | 11,80 | |
| 5,800 | 66,000 | 28,000 | 12,10 | |
| 5,900 | 66,000 | 28,000 | 11,80 | |
| 5,950 | 15/64 | 66,000 | 28,000 | 11,30 |
| 6,000 | 66,000 | 28,000 | 9,90 | |
| 6,100 | 70,000 | 31,000 | 11,70 | |
| 6,200 | 70,000 | 31,000 | 11,70 | |
| 6,300 | 70,000 | 31,000 | 12,30 | |
| 6,350 | 1/4 | 70,000 | 31,000 | 12,20 |
| 6,400 | 70,000 | 31,000 | 12,20 | |
| 6,500 | 70,000 | 31,000 | 10,30 | |
| 6,600 | 70,000 | 31,000 | 13,00 | |
| 6,700 | 70,000 | 31,000 | 13,30 | |
| 6,800 | 74,000 | 34,000 | 12,00 | |
| 6900 | 74000 | 34000 | 1400 | |
| , 7,000 | , 74,000 | , 34,000 | , 15,70 | |
| 7,100 | 74,000 | 34,000 | 17,30 | |
| 7,140 | 9/32 | 74,000 | 34,000 | 16,60 |
| 7,200 | 74,000 | 34,000 | 17,10 | |
| 7,300 | 74,000 | 34,000 | 17,10 | |
| 7,400 | 74,000 | 34,000 | 17,20 | |
| 7,500 | 74,000 | 34,000 | 16,50 | |
| 7,600 | 79,000 | 37,000 | 18,10 | |
| 7,700 | 79,000 | 37,000 | 18,40 | |
| 7,800 | 79,000 | 37,000 | 15,70 | |
| 7,900 | 79,000 | 37,000 | 18,10 | |
| 7940 | 5/16 | 79000 | 37000 | 1970 |
| , 8,000 | , 79,000 | , 37,000 | , 17,10 | |
| 8,100 | 79,000 | 37,000 | 21,80 | |
| 8,200 | 79,000 | 37,000 | 22,30 | |
| 8300 | 79000 | 37000 | 2280 | |
| , 8,400 | , 79,000 | , 37,000 | , 22,80 | |
| 8500 | 79000 | 37000 | 1920 | |
| , 8,730 | 11/32 | , 84,000 | , 40,000 | , 20,70 |
| 8,800 | 84,000 | 40,000 | 26,40 | |
| 9,000 | 84,000 | 40,000 | 20,70 | |
| 9,300 | 84,000 | 40,000 | 31,60 | |
| 9,500 | 84,000 | 40,000 | 24,90 | |
| 9,800 10,000 | 89,000 89,000 | 43,000 43,000 | 27,50 23,90 |
