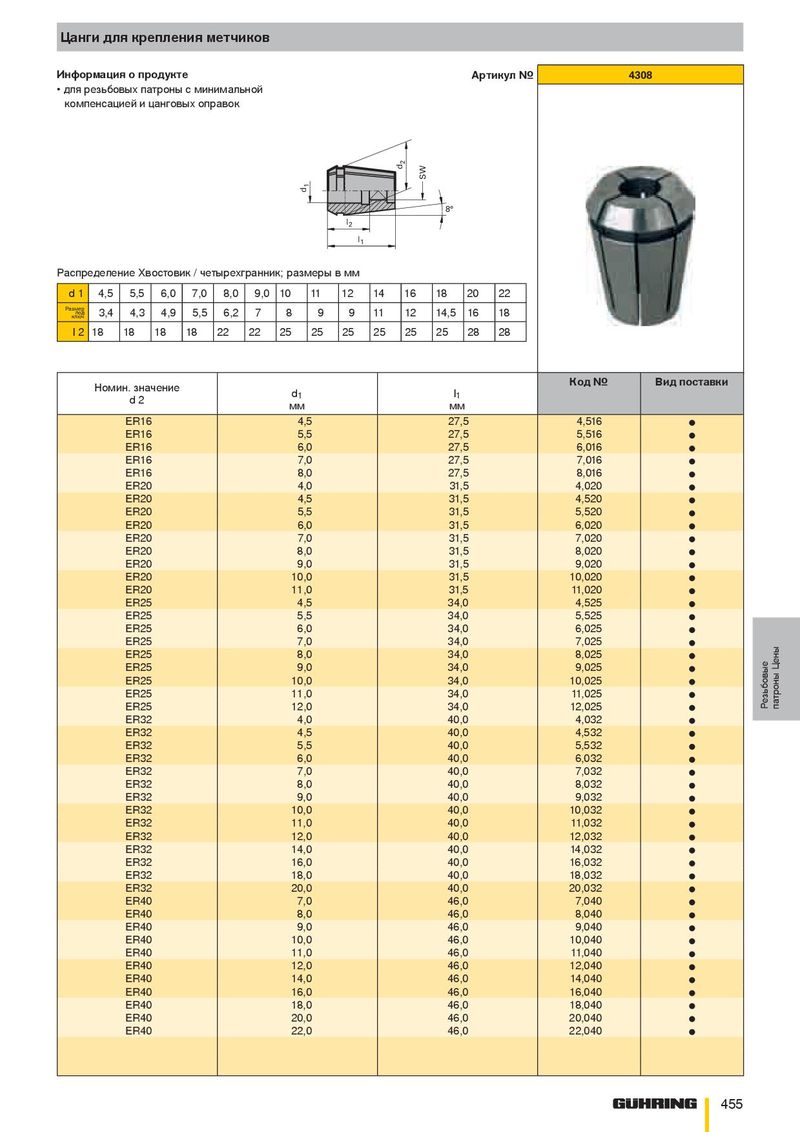

Цанги для крепления метчиков Установочный винт цанги для крепления метчиков
Информация о продукте Артикул № 4308 Артикул № 4906
- для резьбовых патроны с минимальной компенсацией и цанговых оправок
l 2 l1
8°
l SW 1
| Распр | еделе | ние Хв | остов | ик / че | тырех | гранни | к; раз | меры | в мм | |||||
| d 1 | 4,5 | 5,5 | 6,0 | 7,0 | 8,0 | 9,0 | 10 | 11 | 12 | 14 | 16 | 18 | 20 | 22 |
| Размер под ключ | 3,4 | 4,3 | 4,9 | 5,5 | 6,2 | 7 | 8 | 9 | 9 | 11 | 12 | 14,5 | 16 | 18 |
| l 2 | 18 | 18 | 18 | 18 | 22 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 28 | 28 |
l 2 18 18 18 18 22 22 25 25 25 25 25 25 28 28
| Номин. значение | Код № | Вид поставки | ||
| d 2 | d1 мм | l1 мм | ||
| ER16 | 4,5 | 27,5 | 4,516 | |
| ER16 | 5,5 | 27,5 | 5,516 | |
| ER16 | 6,0 | 27,5 | 6,016 | |
| ER16 | 7,0 | 27,5 | 7,016 | |
| ER16 | 8,0 | 27,5 | 8,016 | |
| ER20 | 4,0 | 31,5 | 4,020 | |
| ER20 | 4,5 | 31,5 | 4,520 | |
| ER20 | 5,5 | 31,5 | 5,520 | |
| ER20 | 6,0 | 31,5 | 6,020 | |
| ER20 | 7,0 | 31,5 | 7,020 | |
| ER20 | 8,0 | 31,5 | 8,020 | |
| ER20 | 9,0 | 31,5 | 9,020 | |
| ER20 | 10,0 | 31,5 | 10,020 | |
| ER20 | 11,0 | 31,5 | 11,020 | |
| ER25 | 4,5 | 34,0 | 4,525 | |
| ER25 | 5,5 | 34,0 | 5,525 | |
| ER25 | 6,0 | 34,0 | 6,025 | |
| ER25 | 7,0 | 34,0 | 7,025 | |
| ER25 | 8,0 | 34,0 | 8,025 | |
| ER25 | 9,0 | 34,0 | 9,025 | |
| ER25 | 10,0 | 34,0 | 10,025 | |
| ER25 | 11,0 | 34,0 | 11,025 | |
| ER25 | 12,0 | 34,0 | 12,025 | |
| ER32 | 4,0 | 40,0 | 4,032 | |
| ER32 | 4,5 | 40,0 | 4,532 | |
| ER32 | 5,5 | 40,0 | 5,532 | |
| ER32 | 6,0 | 40,0 | 6,032 | |
| ER32 | 7,0 | 40,0 | 7,032 | |
| ER32 | 8,0 | 40,0 | 8,032 | |
| ER32 | 9,0 | 40,0 | 9,032 | |
| ER32 | 10,0 | 40,0 | 10,032 | |
| ER32 | 11,0 | 40,0 | 11,032 | |
| ER32 | 12,0 | 40,0 | 12,032 | |
| ER32 | 14,0 | 40,0 | 14,032 | |
| ER32 | 16,0 | 40,0 | 16,032 | |
| ER32 | 18,0 | 40,0 | 18,032 | |
| ER32 | 20,0 | 40,0 | 20,032 | |
| ER40 | 7,0 | 46,0 | 7,040 | |
| ER40 | 8,0 | 46,0 | 8,040 | |
| ER40 | 9,0 | 46,0 | 9,040 | |
| ER40 | 100 | 460 | 10040 | |
| ER40 | , 11,0 | , 46,0 | , 11,040 | |
| ER40 | 120 | 460 | 12040 | |
| ER40 | , 140 | , 460 | , 14040 | |
| ER40 | , 16,0 | , 46,0 | , 16,040 | |
| ER40 | 18,0 | 46,0 | 18,040 | |
| ER40 | 20,0 | 46,0 | 20,040 | |
| ER40 | 22,0 | 46,0 | 22,040 |
