Общий каталог FANAR 2021 - страница 322

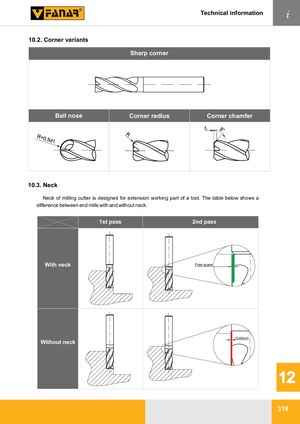

Technical information i 10.2. Corner variants Sharp corner Ball nose Corner radius Corner chamfer 10.3. Neck Neck of milling cutter is designed for extension working part of a tool. The table below shows a difference between end mills with and without neck. 1st pass 2nd pass With neck Free space Collision Without neck 12 319
