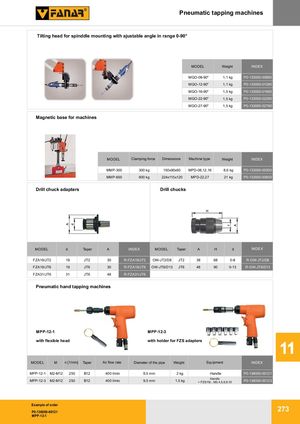

Pneumatic tapping machines Tilting head for spinddle mounting with ajustable angle in range 0-90° MODEL Weight INDEX MGO-08-90o 1,1 kg P0-133000-00890 MGO-12-90o 1,1 kg P0-133000-01290 MGO-16-90o 1,5 kg P0-133000-01690 MGO-22-90o 1,5 kg P0-133000-02290 MGO-27-90o 1,5 kg P0-133000-02790 Magnetic base for machines MODEL Clamping force Dimensions Machine type Weight INDEX MMP-300 300 kg 150x90x93 MPD-08,12,16 8,6 kg P0-133000-00300 MMP-600 600 kg 224x115x120 MPD-22,27 21 kg P0-133000-00600 Drill chuck adapters Drill chucks MODEL d Taper A INDEX MODEL Taper A H d INDEX FZA19/JT2 19 JT2 30 R-FZA19/JT2 OW-JT2/D8 JT2 38 68 0-8 R-OW-JT2/D8 FZA19/JT6 19 JT6 30 R-FZA19/JT6 OW-JT6/D13 JT6 48 90 0-13 R-OW-JT6/D13 FZA31/JT6 31 JT6 48 R-FZA31/JT6 Pneumatic hand tapping machines MPP-12-1 MPP-12-3 with flexible head with holder for FZS adapters 11 MODEL M n [1/min] Taper Air flow rate Diameter of the pipe Weight Equipment INDEX MPP-12-1 M2-M12 250 B12 400 l/min 9,5 mm 2 kg Handle P0-136000-00121 Handle MPP-12-3 M2-M12 250 B12 400 l/min 9,5 mm 1,5 kg + FZS19/...M3,4,5,6,8,10 P0-136000-00123 Example of order P0-136000-00121 273 MPP-12-1 d
