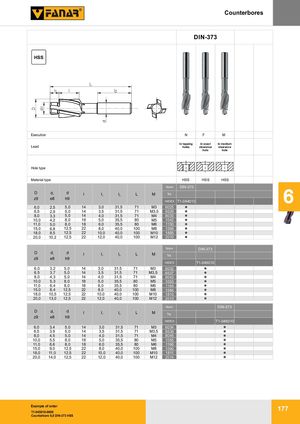

WK — Цековки
| Исполнение | N — в резьбовых отверстиях | F — в отверстиях точного зазора | M — в отверстиях среднего зазора |
|---|
| Группы материалов | |
| Тип посадки | |
| Отверстие | |
| Внутреннее охлаждение | |
| Качество материала | |
| Тип отверстия | |
| Покрытие | |
| Тип материала | HSS | HSS | HSS |
| Норма | DIN-373 |
| D z9 | d1 e8 | d h9 | l | l1 | l2 | L | M | INDEX T1-044010 |
|---|
| 6,0 | 2,5 | 5,0 | 14 | 3,0 | 31,5 | 71 | M3 | 6025 |
| 6,5 | 2,9 | 5,0 | 14 | 3,5 | 31,5 | 71 | M3,5 | 6529 |
| 8,0 | 3,3 | 5,0 | 14 | 4,0 | 31,5 | 71 | M4 | 8033 |
| 10,0 | 4,2 | 8,0 | 18 | 5,0 | 35,5 | 80 | M5 | 1042 |
| 11,0 | 5,0 | 8,0 | 18 | 6,0 | 35,5 | 80 | M6 | 1150 |
| 15,0 | 6,8 | 12,5 | 22 | 8,0 | 40,0 | 100 | M8 | 1568 |
| 18,0 | 8,5 | 12,5 | 22 | 10,0 | 40,0 | 100 | M10 | 1885 |
| 20,0 | 10,2 | 12,5 | 22 | 12,0 | 40,0 | 100 | M12 | 2010 |
| D z9 | d1 e8 | d h9 | l | l1 | l2 | L | M | INDEX T1-045010 |
|---|
| 6,0 | 3,2 | 5,0 | 14 | 3,0 | 31,5 | 71 | M3 | 6032 |
| 6,5 | 3,7 | 5,0 | 14 | 3,5 | 31,5 | 71 | M3,5 | 6537 |
| 8,0 | 4,3 | 5,0 | 14 | 4,0 | 31,5 | 71 | M4 | 8043 |
| 10,0 | 5,3 | 8,0 | 18 | 5,0 | 35,5 | 80 | M5 | 1053 |
| 11,0 | 6,4 | 8,0 | 18 | 6,0 | 35,5 | 80 | M6 | 1164 |
| 15,0 | 8,4 | 12,5 | 22 | 8,0 | 40,0 | 100 | M8 | 1584 |
| 18,0 | 10,5 | 12,5 | 22 | 10,0 | 40,0 | 100 | M10 | 1810 |
| 20,0 | 13,0 | 12,5 | 22 | 12,0 | 40,0 | 100 | M12 | 2013 |
| D z9 | d1 e8 | d h9 | l | l1 | l2 | L | M | INDEX T1-046010 |
|---|
| 6,0 | 3,4 | 5,0 | 14 | 3,0 | 31,5 | 71 | M3 | 6034 |
| 6,5 | 3,9 | 5,0 | 14 | 3,5 | 31,5 | 71 | M3,5 | 6539 |
| 8,0 | 4,5 | 5,0 | 14 | 4,0 | 31,5 | 71 | M4 | 8045 |
| 10,0 | 5,5 | 8,0 | 18 | 5,0 | 35,5 | 80 | M5 | 1055 |
| 11,0 | 6,6 | 8,0 | 18 | 6,0 | 35,5 | 80 | M6 | 1166 |
| 15,0 | 9,0 | 12,5 | 22 | 8,0 | 40,0 | 100 | M8 | 1590 |
| 18,0 | 11,0 | 12,5 | 22 | 10,0 | 40,0 | 100 | M10 | 1811 |
| 20,0 | 14,0 | 12,5 | 22 | 12,0 | 40,0 | 100 | M12 | 2014 |
Пример заказа
T1-045010-0600
Цековка 6,0 DIN-373 HSS
