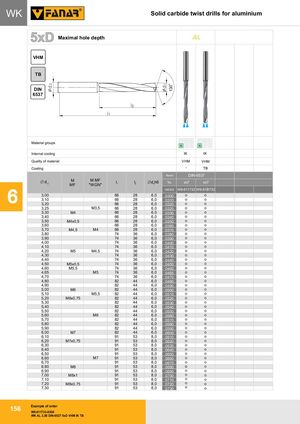

Общий каталог FANAR 2021 - страница 159
Навигация
Общий каталог FANAR 2018
Каталог FANAR цельные твердосплавные фрезы
Цельнотвердосплавные спиральные сверла для алюминия WK
5xD Максимальная глубина сверления, AL
VHM, TB, DIN 6537
Группы материалов, Внутреннее охлаждение, Качество материала, Покрытие
| Ćd1 | M | M MF | M "WGN" | l1 | l2 | Ćd2h6 | INDEX W9-611733 | INDEX W9-61B733 |
|---|---|---|---|---|---|---|---|---|
| 3,00 | 66 | 28 | 6,0 | 0300 | ||||
| 3,10 | 66 | 28 | 6,0 | 0310 | ||||
| 3,20 | 66 | 28 | 6,0 | 0320 | ||||
| 3,25 | M3,5 | 66 | 28 | 6,0 | 0325 | |||
| 3,30 | M4 | 66 | 28 | 6,0 | 0330 | |||
| 3,40 | 66 | 28 | 6,0 | 0340 | ||||
| 3,50 | M4x0,5 | 66 | 28 | 6,0 | 0350 | |||
| 3,60 | 66 | 28 | 6,0 | 0360 | ||||
| 3,70 | M4,5 | M4 | 66 | 28 | 6,0 | 0370 | ||
| 3,80 | 74 | 36 | 6,0 | 0380 | ||||
| 3,90 | 74 | 36 | 6,0 | 0390 | ||||
| 4,00 | 74 | 36 | 6,0 | 0400 | ||||
| 4,10 | 74 | 36 | 6,0 | 0410 | ||||
| 4,20 | M5 | M4,5 | 74 | 36 | 6,0 | 0420 | ||
| 4,30 | 74 | 36 | 6,0 | 0430 | ||||
| 4,40 | 74 | 36 | 6,0 | 0440 | ||||
| 4,50 | M5x0,5 | 74 | 36 | 6,0 | 0450 | |||
| 4,60 | M5,5 | 74 | 36 | 6,0 | 0460 | |||
| 4,65 | M5 | 74 | 36 | 6,0 | 0465 | |||
| 4,70 | 74 | 36 | 6,0 | 0470 | ||||
| 4,80 | 82 | 44 | 6,0 | 0480 | ||||
| 4,90 | 82 | 44 | 6,0 | 0490 | ||||
| 5,00 | M6 | 82 | 44 | 6,0 | 0500 | |||
| 5,10 | M5,5 | 82 | 44 | 6,0 | 0510 | |||
| 5,20 | M6x0,75 | 82 | 44 | 6,0 | 0520 | |||
| 5,30 | 82 | 44 | 6,0 | 0530 | ||||
| 5,40 | 82 | 44 | 6,0 | 0540 | ||||
| 5,50 | 82 | 44 | 6,0 | 0550 | ||||
| 5,60 | M6 | 82 | 44 | 6,0 | 0560 | |||
| 5,70 | 82 | 44 | 6,0 | 0570 | ||||
| 5,80 | 82 | 44 | 6,0 | 0580 | ||||
| 5,90 | 82 | 44 | 6,0 | 0590 | ||||
| 6,00 | M7 | 82 | 44 | 6,0 | 0600 | |||
| 6,10 | 91 | 53 | 8,0 | 0610 | ||||
| 6,20 | M7x0,75 | 91 | 53 | 8,0 | 0620 | |||
| 6,30 | 91 | 53 | 8,0 | 0630 | ||||
| 6,40 | 91 | 53 | 8,0 | 0640 | ||||
| 6,50 | 91 | 53 | 8,0 | 0650 | ||||
| 6,60 | M7 | 91 | 53 | 8,0 | 0660 | |||
| 6,70 | 91 | 53 | 8,0 | 0670 | ||||
| 6,80 | M8 | 91 | 53 | 8,0 | 0680 | |||
| 6,90 | 91 | 53 | 8,0 | 0690 | ||||
| 7,00 | M8x1 | 91 | 53 | 8,0 | 0700 | |||
| 7,10 | 91 | 53 | 8,0 | 0710 | ||||
| 7,20 | M8x0,75 | 91 | 53 | 8,0 | 0720 | |||
| 7,30 | 91 | 53 | 8,0 | 0730 |
Пример заказа: W9-611733-0300
WK AL 3,00 DIN-6537 5xD VHM IK TB
