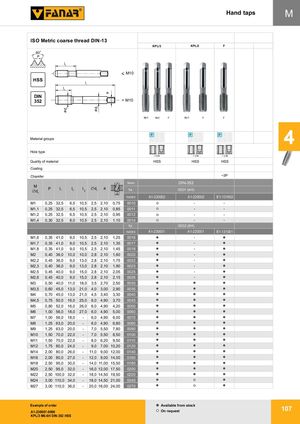

Общий каталог FANAR 2021 - страница 110
Навигация
Общий каталог FANAR 2018
Каталог FANAR цельные твердосплавные фрезы
Метчики ручные
M
ISO метрическая крупная резьба DIN-13. Метрическая мелкая резьба ISO DIN-13.
KPL/3, KPL/2, F
| Группы материалов | P M K (Nr1, Nr2, F) | P M K (Nr1, F) | P M K (F) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| N S H | N S H | N S H | |||||||
Тип отверстия: < 2,5d (для всех вариантов). Качество материала: HSS. Фаска: ~3P (для F).
Норма: DIN-352. Допуск: ISO1 (4H) / ISO2 (6H).
| M Ćd1 | P | l1 | l2 | l3 | Ćd2 | a | Tol.4H INDEX (KPL/3) | Tol.4H INDEX (KPL/2) | Tol.4H INDEX (F) | Tol.6H INDEX (KPL/3) | Tol.6H INDEX (KPL/2) | Tol.6H INDEX (F) |
|---|
| M | P | l1 | l2 | l3 | Ćd2 | a | Ćd1 | № (0010-0270) | INDEX (Tol.6H, A1-230001/A1-220001/E1-131001) |
|---|---|---|---|---|---|---|---|---|---|
| M1 | 0,25 | 32,5 | 6,5 | 10,5 | 2,5 | 2,10 | 0,75 | 0010 | только KPL/3 (A1-230002), тол.4H |
| M1,1 | 0,25 | 32,5 | 6,5 | 10,5 | 2,5 | 2,10 | 0,85 | 0011 | - |
| M1,2 | 0,25 | 32,5 | 6,5 | 10,5 | 2,5 | 2,10 | 0,95 | 0012 | - |
| M1,4 | 0,30 | 32,5 | 8,0 | 10,5 | 2,5 | 2,10 | 1,10 | 0014 | - |
| M1,6 | 0,35 | 41,0 | 9,0 | 10,5 | 2,5 | 2,10 | 1,25 | 0016 | A1-230001 / A1-220001 / E1-131001 |
| M1,7 | 0,35 | 41,0 | 9,0 | 10,5 | 2,5 | 2,10 | 1,35 | 0017 | - |
| M1,8 | 0,35 | 41,0 | 9,0 | 10,5 | 2,5 | 2,10 | 1,45 | 0018 | - |
| M2 | 0,40 | 36,0 | 10,0 | 10,0 | 2,8 | 2,10 | 1,60 | 0020 | - |
| M2,2 | 0,45 | 36,0 | 9,0 | 13,0 | 2,8 | 2,10 | 1,75 | 0022 | - |
| M2,3 | 0,40 | 36,0 | 9,0 | 13,0 | 2,8 | 2,10 | 1,90 | 0023 | - |
| M2,5 | 0,45 | 40,0 | 9,0 | 15,0 | 2,8 | 2,10 | 2,05 | 0025 | - |
| M2,6 | 0,45 | 40,0 | 9,0 | 15,0 | 2,8 | 2,10 | 2,15 | 0026 | - |
| M3 | 0,50 | 40,0 | 11,0 | 18,0 | 3,5 | 2,70 | 2,50 | 0030 | A1-230001 / A1-220001 / E1-131001 |
| M3,5 | 0,60 | 45,0 | 13,0 | 21,0 | 4,0 | 3,00 | 2,90 | 0035 | A1-230001 / A1-220001 / E1-131001 |
| M4 | 0,70 | 45,0 | 13,0 | 21,0 | 4,5 | 3,40 | 3,30 | 0040 | A1-230001 / A1-220001 / E1-131001 |
| M4,5 | 0,75 | 50,0 | 16,0 | 25,0 | 6,0 | 4,90 | 3,70 | 0045 | A1-230001 / A1-220001 / E1-131001 |
| M5 | 0,80 | 52,0 | 16,0 | 26,0 | 6,0 | 4,90 | 4,20 | 0050 | A1-230001 / A1-220001 / E1-131001 |
| M6 | 1,00 | 56,0 | 18,0 | 27,0 | 6,0 | 4,90 | 5,00 | 0060 | A1-230001 / A1-220001 / E1-131001 |
| M7 | 1,00 | 56,0 | 18,0 | - | 6,0 | 4,90 | 6,00 | 0070 | A1-230001 / A1-220001 / E1-131001 |
| M8 | 1,25 | 63,0 | 20,0 | - | 6,0 | 4,90 | 6,80 | 0080 | A1-230001 / A1-220001 / E1-131001 |
| M9 | 1,25 | 63,0 | 20,0 | - | 7,0 | 5,50 | 7,80 | 0090 | A1-230001 / A1-220001 / E1-131001 |
| M10 | 1,50 | 70,0 | 22,0 | - | 7,0 | 5,50 | 8,50 | 0100 | A1-230001 / A1-220001 / E1-131001 |
| M11 | 1,50 | 70,0 | 22,0 | - | 8,0 | 6,20 | 9,50 | 0110 | A1-230001 / A1-220001 / E1-131001 |
| M12 | 1,75 | 80,0 | 24,0 | - | 9,0 | 7,00 | 10,20 | 0120 | A1-230001 / A1-220001 / E1-131001 |
| M14 | 2,00 | 80,0 | 26,0 | - | 11,0 | 9,00 | 12,00 | 0140 | A1-230001 / A1-220001 / E1-131001 |
| M16 | 2,00 | 80,0 | 27,0 | - | 12,0 | 9,00 | 14,00 | 0160 | A1-230001 / A1-220001 / E1-131001 |
| M18 | 2,50 | 95,0 | 30,0 | - | 14,0 | 11,00 | 15,50 | 0180 | A1-230001 / A1-220001 / E1-131001 |
| M20 | 2,50 | 95,0 | 32,0 | - | 16,0 | 12,00 | 17,50 | 0200 | A1-230001 / A1-220001 / E1-131001 |
| M22 | 2,50 | 100,0 | 32,0 | - | 18,0 | 14,50 | 19,50 | 0220 | A1-230001 / A1-220001 / E1-131001 |
| M24 | 3,00 | 110,0 | 34,0 | - | 18,0 | 14,50 | 21,00 | 0240 | A1-230001 / A1-220001 / E1-131001 |
| M27 | 3,00 | 110,0 | 36,0 | - | 20,0 | 16,00 | 24,00 | 0270 | A1-230001 / A1-220001 / E1-131001 |
Пример заказа
A1-230001-0060
KPL/3 M6-6H DIN-352 HSS
Наличие на складе: по запросу.
