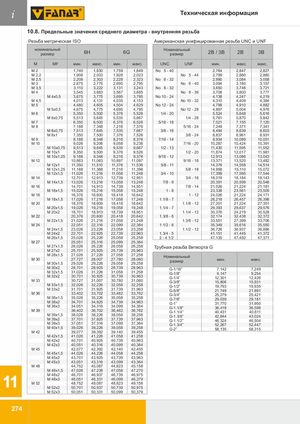

10.8. Предельные значения среднего диаметра — внутренняя резьба
Резьба метрическая ISO
| Номинальный размер | 6H мин. | 6H макс. | 6G мин. | 6G макс. |
|---|---|---|---|---|
| M2 | 1,740 | 1,830 | 1,759 | 1,849 |
| M2,2 | 1,908 | 2,003 | 1,928 | 2,023 |
| M2,5 | 2,208 | 2,303 | 2,228 | 2,323 |
| M3 | 2,675 | 2,775 | 2,695 | 2,795 |
| M3,5 | 3,110 | 3,222 | 3,131 | 3,243 |
| M4 | 3,545 | 3,663 | 3,567 | 3,685 |
| M4x0,5 | 3,675 | 3,775 | 3,695 | 3,795 |
| M4,5 | 4,013 | 4,131 | 4,035 | 4,153 |
| M5 | 4,480 | 4,605 | 4,504 | 4,629 |
| M5x0,5 | 4,675 | 4,775 | 4,695 | 4,795 |
| M6 | 5,350 | 5,500 | 5,376 | 5,526 |
| M6x0,75 | 5,513 | 5,645 | 5,535 | 5,667 |
| M7 | 6,350 | 6,500 | 6,376 | 6,526 |
| M8 | 7,188 | 7,348 | 7,216 | 7,376 |
| M8x0,75 | 7,513 | 7,645 | 7,535 | 7,667 |
| M8x1 | 7,350 | 7,500 | 7,376 | 7,526 |
| M9 | 8,188 | 8,348 | 8,216 | 8,376 |
| M10 | 9,026 | 9,206 | 9,058 | 9,238 |
| M10x0,75 | 9,513 | 9,645 | 9,535 | 9,667 |
| M10x1 | 9,350 | 9,500 | 9,376 | 9,526 |
| M10x1,25 | 9,188 | 9,348 | 9,216 | 9,376 |
| M12 | 10,863 | 11,063 | 10,897 | 11,097 |
| M12x1 | 11,350 | 11,510 | 11,376 | 11,536 |
| M12x1,25 | 11,188 | 11,368 | 11,216 | 11,396 |
| M12x1,5 | 11,026 | 11,216 | 11,058 | 11,248 |
| M14 | 12,701 | 12,913 | 12,739 | 12,951 |
| M14x1,5 | 13,026 | 13,216 | 13,058 | 13,248 |
| M16 | 14,701 | 14,913 | 14,739 | 14,951 |
| M16x1,5 | 15,026 | 15,216 | 15,058 | 15,248 |
| M18 | 16,376 | 16,600 | 16,418 | 16,642 |
| M18x1,5 | 17,026 | 17,216 | 17,058 | 17,248 |
| M20 | 18,376 | 18,600 | 18,418 | 18,642 |
| M20x1,5 | 19,026 | 19,216 | 19,058 | 19,248 |
| M20x2 | 18,701 | 18,913 | 18,739 | 18,951 |
| M22 | 20,376 | 20,600 | 20,418 | 20,642 |
| M22x1,5 | 21,026 | 21,216 | 21,058 | 21,248 |
| M24 | 22,051 | 22,316 | 22,099 | 22,364 |
| M24x1,5 | 23,026 | 23,226 | 23,058 | 23,258 |
| M24x2 | 22,701 | 22,925 | 22,739 | 22,963 |
| M26x1,5 | 25,026 | 25,226 | 25,058 | 25,258 |
| M27 | 25,051 | 25,316 | 25,099 | 25,364 |
| M27x1,5 | 26,026 | 26,226 | 26,058 | 26,258 |
| M27x2 | 25,701 | 25,925 | 25,739 | 25,963 |
| M28x1,5 | 27,026 | 27,226 | 27,058 | 27,258 |
| M30 | 27,727 | 28,007 | 27,780 | 28,060 |
| M30x1,5 | 29,026 | 29,226 | 29,058 | 29,258 |
| M30x2 | 28,701 | 28,925 | 28,739 | 28,963 |
| M32x1,5 | 31,026 | 31,226 | 31,058 | 31,258 |
| M32x2 | 30,701 | 30,925 | 30,739 | 30,963 |
| M33 | 30,727 | 31,007 | 30,780 | 31,060 |
| M33x1,5 | 32,026 | 32,226 | 32,058 | 32,258 |
| M33x2 | 31,701 | 31,925 | 31,739 | 31,963 |
| M36 | 33,402 | 33,702 | 33,462 | 33,762 |
| M36x1,5 | 35,026 | 35,226 | 35,058 | 35,258 |
| M36x2 | 34,701 | 34,925 | 34,739 | 34,963 |
| M36x3 | 34,051 | 34,316 | 34,099 | 34,364 |
| M39 | 36,402 | 36,702 | 36,462 | 36,762 |
| M39x1,5 | 38,026 | 38,226 | 38,058 | 38,258 |
| M39x2 | 37,701 | 37,925 | 37,739 | 37,963 |
| M39x3 | 37,051 | 37,316 | 37,099 | 37,364 |
| M40x1,5 | 39,026 | 39,226 | 39,058 | 39,258 |
| M42 | 39,077 | 39,392 | 39,140 | 39,455 |
| M42x1,5 | 41,026 | 41,226 | 41,058 | 41,258 |
| M42x2 | 40,701 | 40,925 | 40,739 | 40,963 |
| M42x3 | 40,051 | 40,316 | 40,099 | 40,364 |
| M45 | 42,077 | 42,392 | 42,140 | 42,455 |
| M45x1,5 | 44,026 | 44,226 | 44,058 | 44,258 |
| M45x2 | 43,701 | 43,925 | 43,739 | 43,963 |
| M45x3 | 43,051 | 43,316 | 43,099 | 43,364 |
| M48 | 44,752 | 45,087 | 44,823 | 45,158 |
| M48x1,5 | 47,026 | 47,238 | 47,058 | 47,270 |
| M48x2 | 46,701 | 46,937 | 46,739 | 46,975 |
| M48x3 | 46,051 | 46,331 | 46,099 | 46,379 |
| M52 | 48,752 | 49,087 | 48,823 | 49,158 |
| M52x2 | 50,701 | 50,937 | 50,739 | 50,975 |
| M52x3 | 50,051 | 50,331 | 50,099 | 50,379 |
Американская унифицированная резьба UNC и UNF
| Номинальный размер | 2B/3B мин. | 2B макс. | 3B макс. |
|---|---|---|---|
| No 5 - 40 | 2,764 | 2,847 | 2,827 |
| No 5 - 44 | 2,799 | 2,880 | 2,860 |
| No 6 - 32 | 2,990 | 3,084 | 3,058 |
| No 6 - 40 | 3,094 | 3,180 | 3,157 |
| No 8 - 32 | 3,650 | 3,746 | 3,721 |
| No 8 - 36 | 3,708 | 3,800 | 3,777 |
| No 10 - 24 | 4,138 | 4,247 | 4,219 |
| No 10 - 32 | 4,310 | 4,409 | 4,384 |
| No 12 - 24 | 4,798 | 4,910 | 4,882 |
| No 12 - 28 | 4,897 | 5,004 | 4,976 |
| 1/4 - 20 | 5,524 | 5,648 | 5,616 |
| 1/4 - 28 | 5,761 | 5,870 | 5,842 |
| 5/16 - 18 | 7,021 | 7,155 | 7,120 |
| 5/16 - 24 | 7,249 | 7,371 | 7,341 |
| 3/8 - 16 | 8,494 | 8,639 | 8,603 |
| 3/8 - 24 | 8,837 | 8,961 | 8,931 |
| 7/16 - 14 | 9,934 | 10,089 | 10,051 |
| 7/16 - 20 | 10,287 | 10,424 | 10,391 |
| 1/2 - 13 | 11,430 | 11,595 | 11,552 |
| 1/2 - 20 | 11,874 | 12,017 | 11,981 |
| 9/16 - 12 | 12,913 | 13,086 | 13,043 |
| 9/16 - 18 | 13,371 | 13,520 | 13,482 |
| 5/8 - 11 | 14,376 | 14,559 | 14,514 |
| 5/8 - 18 | 14,958 | 15,110 | 15,072 |
| 3/4 - 10 | 17,399 | 17,595 | 17,544 |
| 3/4 - 16 | 18,019 | 18,184 | 18,143 |
| 7/8 - 9 | 20,391 | 20,599 | 20,546 |
| 7/8 - 14 | 21,026 | 21,224 | 21,181 |
| 1 - 8 | 23,338 | 23,561 | 23,505 |
| 1 - 12 | 24,026 | 21,224 | 24,171 |
| 1.1/8 - 7 | 26,218 | 26,457 | 26,398 |
| 1.1/8 - 12 | 27,201 | 21,224 | 27,351 |
| 1.1/4 - 7 | 29,393 | 29,637 | 29,576 |
| 1.1/4 - 12 | 30,376 | 24,219 | 30,528 |
| 1.3/8 - 6 | 32,174 | 32,438 | 32,372 |
| 1.3/8 - 12 | 33,551 | 27,399 | 33,706 |
| 1.1/2 - 6 | 35,349 | 35,616 | 35,550 |
| 1.1/2 - 12 | 36,726 | 36,937 | 36,886 |
| 1.3/4 - 5 | 41,151 | 41,445 | 41,372 |
| 2 - 4.1/2 | 47,135 | 47,450 | 47,371 |
Трубная резьба Витворта G
| Номинальный размер | мин. | макс. |
|---|---|---|
| G-1/16" | 7,142 | 7,249 |
| G-1/8" | 9,147 | 9,254 |
| G-1/4" | 12,301 | 12,426 |
| G-3/8" | 15,806 | 15,931 |
| G-1/2" | 19,793 | 19,935 |
| G-5/8" | 21,749 | 21,891 |
| G-3/4" | 25,279 | 25,421 |
| G-7/8" | 29,039 | 29,181 |
| G-1" | 31,770 | 31,950 |
| G-1.1/8" | 36,418 | 36,598 |
| G-1.1/4" | 40,431 | 40,611 |
| G-1.3/8" | 42,844 | 43,024 |
| G-1.1/2" | 46,324 | 46,504 |
| G-1.3/4" | 52,267 | 52,447 |
| G-2" | 58,135 | 58,315 |
