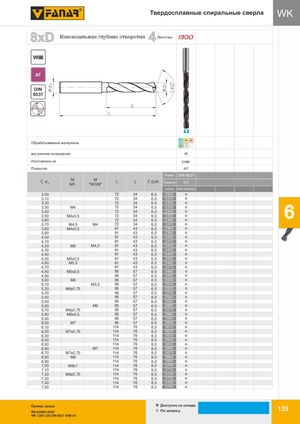

Общий каталог FANAR 2018 - страница 139
Навигация
Каталог FANAR цельные твердосплавные фрезы
Общий каталог FANAR 2021
WK
Твердосплавные спиральные сверла
8xD — максимальная глубина отверстия, 4 ленточки, 1300
VHM, AT, DIN 6537
| Обрабатываемые материалы | P/M/K, N/S/H |
| Внутреннее охлаждение | IK |
| Изготовлено из | VHM |
| Покрытие | AT |
| Норма | DIN-6537 |
| Точность | m7 |
| INDEX | W9-624063 |
| Ćd1 | M MF | M "WGN" | l1 | l2 | Ćd2h6 | INDEX |
|---|---|---|---|---|---|---|
| 3,00 | 72 | 34 | 6,0 | 0300 | ||
| 3,10 | 72 | 34 | 6,0 | 0310 | ||
| 3,20 | 72 | 34 | 6,0 | 0320 | ||
| 3,30 | M4 | 72 | 34 | 6,0 | 0330 | |
| 3,40 | 72 | 34 | 6,0 | 0340 | ||
| 3,50 | M4x0,5 | 72 | 34 | 6,0 | 0350 | |
| 3,60 | 72 | 34 | 6,0 | 0360 | ||
| 3,70 | M4,5 | M4 | 72 | 34 | 6,0 | 0370 |
| 3,80 | M5 | M4,5 | 81 | 43 | 6,0 | 0380 |
| 3,90 | 81 | 43 | 6,0 | 0390 | ||
| 4,00 | 81 | 43 | 6,0 | 0400 | ||
| 4,10 | 81 | 43 | 6,0 | 0410 | ||
| 4,20 | 81 | 43 | 6,0 | 0420 | ||
| 4,30 | 81 | 43 | 6,0 | 0430 | ||
| 4,40 | M5x0,5 | 81 | 43 | 6,0 | 0440 | |
| 4,50 | 81 | 43 | 6,0 | 0450 | ||
| 4,60 | M5,5 | 81 | 43 | 6,0 | 0460 | |
| 4,70 | 81 | 43 | 6,0 | 0470 | ||
| 4,80 | M6 | M5x0,5 | 95 | 57 | 6,0 | 0480 |
| 4,90 | 95 | 57 | 6,0 | 0490 | ||
| 5,00 | 95 | 57 | 6,0 | 0500 | ||
| 5,10 | M5,5 | 95 | 57 | 6,0 | 0510 | |
| 5,20 | M6x0,75 | 95 | 57 | 6,0 | 0520 | |
| 5,30 | 95 | 57 | 6,0 | 0530 | ||
| 5,40 | 95 | 57 | 6,0 | 0540 | ||
| 5,50 | 95 | 57 | 6,0 | 0550 | ||
| 5,60 | M6 | 95 | 57 | 6,0 | 0560 | |
| 5,70 | M6x0,75 | 95 | 57 | 6,0 | 0570 | |
| 5,80 | M7 | M6x0,5 | 95 | 57 | 6,0 | 0580 |
| 5,90 | 95 | 57 | 6,0 | 0590 | ||
| 6,00 | M7 | 95 | 57 | 6,0 | 0600 | |
| 6,10 | M8 | M7 | 114 | 76 | 8,0 | 0610 |
| 6,20 | M7x0,75 | 114 | 76 | 8,0 | 0620 | |
| 6,30 | 114 | 76 | 8,0 | 0630 | ||
| 6,40 | 114 | 76 | 8,0 | 0640 | ||
| 6,50 | 114 | 76 | 8,0 | 0650 | ||
| 6,60 | 114 | 76 | 8,0 | 0660 | ||
| 6,70 | M7x0,75 | 114 | 76 | 8,0 | 0670 | |
| 6,80 | M8 | 114 | 76 | 8,0 | 0680 | |
| 6,90 | M8x1 | M8 | 114 | 76 | 8,0 | 0690 |
| 7,00 | 114 | 76 | 8,0 | 0700 | ||
| 7,10 | 114 | 76 | 8,0 | 0710 | ||
| 7,20 | M8x0,75 | 114 | 76 | 8,0 | 0720 | |
| 7,30 | 114 | 76 | 8,0 | 0730 | ||
| 7,40 | 114 | 76 | 8,0 | 0740 | ||
| 7,50 | 114 | 76 | 8,0 | 0750 |
Пример заказа
W9-624063-0300
WK 1300 3,00 DIN-6537 VHM AT
Доступно со склада / По запросу. Возможность выполнения сверл с хвостовиком по DIN-6535-HB, DIN-6535-HE.
