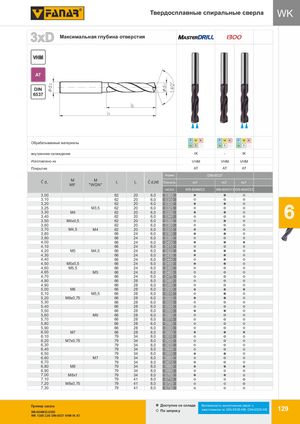

Общий каталог FANAR 2018 - страница 133
Навигация
Каталог FANAR цельные твердосплавные фрезы
Общий каталог FANAR 2021
WK
Твердосплавные спиральные сверла
3xD — максимальная глубина отверстия, MASTERDRILL, 1300
VHM, AT, DIN 6537
| Обрабатываемые материалы | P/M/K, N/S/H | ||||
| Внутреннее охлаждение | IK | IK | - | IK | |
| Изготовлено из | VHM | VHM | VHM | VHM | |
| Покрытие | AT | AT | AT | AT | |
| Норма | DIN-6537 | ||||
| Точность | m7 | m7 | m7 | ||
| INDEX | W9-604M33 | W9-604013 | W9-604033 | ||
| Ćd1 | M MF | M "WGN" | l1 | l2 | Ćd2h6 | INDEX |
|---|---|---|---|---|---|---|
| 3,00 | 62 | 20 | 6,0 | 0300 | ||
| 3,10 | 62 | 20 | 6,0 | 0310 | ||
| 3,20 | 62 | 20 | 6,0 | 0320 | ||
| 3,25 | M4 | M3,5 | 62 | 20 | 6,0 | 0325 |
| 3,30 | 62 | 20 | 6,0 | 0330 | ||
| 3,40 | 62 | 20 | 6,0 | 0340 | ||
| 3,50 | 62 | 20 | 6,0 | 0350 | ||
| 3,60 | M4x0,5 | 62 | 20 | 6,0 | 0360 | |
| 3,70 | M4,5 | M4 | 62 | 20 | 6,0 | 0370 |
| 3,80 | M5 | M4,5 | 66 | 24 | 6,0 | 0380 |
| 3,90 | 66 | 24 | 6,0 | 0390 | ||
| 4,00 | 66 | 24 | 6,0 | 0400 | ||
| 4,10 | 66 | 24 | 6,0 | 0410 | ||
| 4,20 | 66 | 24 | 6,0 | 0420 | ||
| 4,30 | 66 | 24 | 6,0 | 0430 | ||
| 4,40 | 66 | 24 | 6,0 | 0440 | ||
| 4,50 | M5x0,5 | 66 | 24 | 6,0 | 0450 | |
| 4,60 | M5,5 | 66 | 24 | 6,0 | 0460 | |
| 4,65 | M5 | 66 | 24 | 6,0 | 0465 | |
| 4,70 | 66 | 24 | 6,0 | 0470 | ||
| 4,80 | M6 | M5,5 | 66 | 28 | 6,0 | 0480 |
| 4,90 | 66 | 28 | 6,0 | 0490 | ||
| 5,00 | 66 | 28 | 6,0 | 0500 | ||
| 5,10 | 66 | 28 | 6,0 | 0510 | ||
| 5,20 | M6x0,75 | 66 | 28 | 6,0 | 0520 | |
| 5,30 | 66 | 28 | 6,0 | 0530 | ||
| 5,40 | M6 | 66 | 28 | 6,0 | 0540 | |
| 5,50 | 66 | 28 | 6,0 | 0550 | ||
| 5,60 | 66 | 28 | 6,0 | 0560 | ||
| 5,70 | 66 | 28 | 6,0 | 0570 | ||
| 5,80 | 66 | 28 | 6,0 | 0580 | ||
| 5,90 | 66 | 28 | 6,0 | 0590 | ||
| 6,00 | M7 | 66 | 28 | 6,0 | 0600 | |
| 6,10 | M8 | M7 | 79 | 34 | 8,0 | 0610 |
| 6,20 | M7x0,75 | 79 | 34 | 8,0 | 0620 | |
| 6,30 | 79 | 34 | 8,0 | 0630 | ||
| 6,40 | 79 | 34 | 8,0 | 0640 | ||
| 6,50 | 79 | 34 | 8,0 | 0650 | ||
| 6,60 | 79 | 34 | 8,0 | 0660 | ||
| 6,70 | 79 | 34 | 8,0 | 0670 | ||
| 6,80 | M8 | 79 | 34 | 8,0 | 0680 | |
| 6,90 | M8x1 | M8 | 79 | 34 | 8,0 | 0690 |
| 7,00 | 79 | 34 | 8,0 | 0700 | ||
| 7,10 | 79 | 41 | 8,0 | 0710 | ||
| 7,20 | M8x0,75 | 79 | 41 | 8,0 | 0720 | |
| 7,30 | 79 | 41 | 8,0 | 0730 |
Пример заказа
W9-604M33-0300
WK 1300 3,00 DIN-6537 VHM IK AT
Доступно со склада / По запросу. Возможность выполнения сверл с хвостовиком по DIN-6535-HB, DIN-6535-HE.
