Основной каталог EWS - страница 79

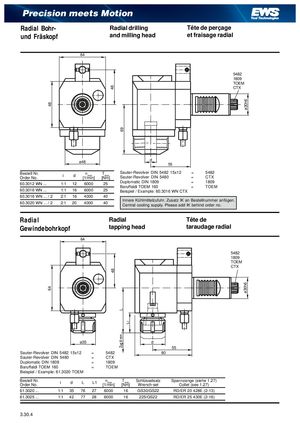

Precision meets Motion Radial Bohr- Radial drilling Tête de perçage und Fräskopf and milling head et fraisage radial 64 5482 1809 TOEM 48 CTX ø30h6 48 69 ø48 d 55 Bestell Nr. nmax Tmax Sauter-Revolver DIN 5482 15x12 = 5482 i d Sauter-Revolver DIN 5480 = CTX Order No. [1/min] [Nm] 60.3012 WN ... 1:1 12 6000 25 Duplomatic DIN 1809 = 1809 Baruffaldi TOEM 160 = TOEM 60.3016 WN ... 1:1 16 6000 25 Beispiel / Example: 60.3016 WN CTX 60.3016 WN ... / 2 2:1 16 4000 40 Innere Kühlmittelzufuhr. Zusatz IK an Bestellnummer anfügen. 60.3020 WN ... / 2 2:1 20 4000 40 Central cooling supply. Please add IK behind order no. Radial Radial Tête de Gewindebohrkopf tapping head taraudage radial 64 5482 1809 TOEM CTX 48 ø30h6 64 L L1 ø35 d 55 Sauter-Revolver DIN 5482 15x12 = 5482 80 Sauter-Revolver DIN 5480 = CTX Duplomatic DIN 1809 = 1809 Baruffaldi TOEM 160 = TOEM Beispiel / Example: 61.3020 TOEM Bestell Nr. nmax Tmax Schlüsselsatz Spannzange (siehe 1.27) i d L L1 Order No. [1/min] [Nm] Wrench-set Collet (see 1.27) 61.3020 ... 1:1 35 76 27 6000 16 GS30/GS22 RD/ER 20 428E (2-13) 61.3025 ... 1:1 42 77 28 6000 16 225/GS22 RD/ER 25 430E (2-16) 3.30. 4
