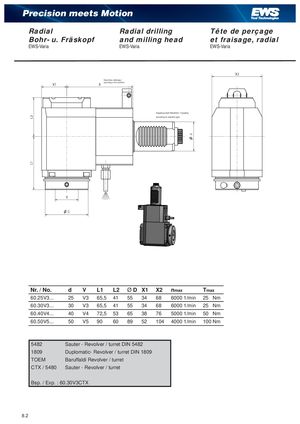

E Precision meets Motion Radial Radial drilling Tête de perçage Bohr- u. Fräskopf and milling head et fraisage, radial EWS-Varia EWS-Varia EWS-Varia 9 Maschinen abhängig / according to the machine 9 9 Kupplung nach Maschine / Coupling according to machine type 7 P
% Nr. / No. d V L1 L2 ØD X1 X2 nmax Tmax 60.25V3... 25 V3 65,5 41 55 34 68 6000 1/min 25 Nm 60.30V3... 30 V3 65,5 41 55 34 68 6000 1/min 25 Nm 60.40V4... 40 V4 72,5 53 65 38 76 5000 1/min 50 Nm 60.50V5... 50 V5 90 60 89 52 104 4000 1/min 100 Nm 5482 Sauter - Revolver / turret DIN 5482 1809 Duplomatic- Revolver / turret DIN 1809 TOEM Baruffaldi Revolver / turret CTX / 5480 Sauter - Revolver / turret Bsp. / Exp. : 60.30V3CTX 8.2
