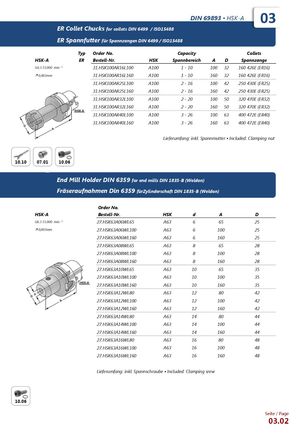

DIN 69893 ▪ HSK-A
03
ER Collet Chucks для цанг DIN 6499 / ISO15488
Патроны для цанг ER по DIN 6499 / ISO15488.
| HSK-A / Тип | Order No. | HSK | Диапазон зажима | A | D | Цанга |
|---|---|---|---|---|---|---|
| ER G6.3 15.000 min-1 0,003mm | 31.HSK100AR16L100 | A100 | 1 - 10 | 100 | 32 | 160 426E (ER16) |
| 31.HSK100AR16L160 | A100 | 1 - 10 | 160 | 32 | 160 426E (ER16) | |
| 31.HSK100AR25L100 | A100 | 2 - 16 | 100 | 42 | 250 430E (ER25) | |
| 31.HSK100AR25L160 | A100 | 2 - 16 | 160 | 42 | 250 430E (ER25) | |
| 31.HSK100AR32L100 | A100 | 2 - 20 | 100 | 50 | 320 470E (ER32) | |
| 31.HSK100AR32L160 | A100 | 2 - 20 | 160 | 50 | 320 470E (ER32) | |
| 31.HSK100AR40L100 | A100 | 3 - 26 | 100 | 63 | 400 472E (ER40) | |
| 31.HSK100AR40L160 | A100 | 3 - 26 | 160 | 63 | 400 472E (ER40) |
Комплект поставки: включая зажимную гайку.
End Mill Holder DIN 6359 для фрез DIN 1835-B (Weldon)
Оправки для фрез DIN 6359 для цилиндрического хвостовика DIN 1835-B (Weldon).
| HSK-A | Order No. | HSK | d | A | D |
|---|---|---|---|---|---|
| G6.3 15.000 min-1 0,003mm | 27.HSK63A06WL65 | A63 | 6 | 65 | 25 |
| 27.HSK63A06WL100 | A63 | 6 | 100 | 25 | |
| 27.HSK63A06WL160 | A63 | 6 | 160 | 25 | |
| 27.HSK63A08WL65 | A63 | 8 | 65 | 28 | |
| 27.HSK63A08WL100 | A63 | 8 | 100 | 28 | |
| 27.HSK63A08WL160 | A63 | 8 | 160 | 28 | |
| 27.HSK63A10WL65 | A63 | 10 | 65 | 35 | |
| 27.HSK63A10WL100 | A63 | 10 | 100 | 35 | |
| 27.HSK63A10WL160 | A63 | 10 | 160 | 35 | |
| 27.HSK63A12WL80 | A63 | 12 | 80 | 42 | |
| 27.HSK63A12WL100 | A63 | 12 | 100 | 42 | |
| 27.HSK63A12WL160 | A63 | 12 | 160 | 42 | |
| 27.HSK63A14WL80 | A63 | 14 | 80 | 44 | |
| 27.HSK63A14WL100 | A63 | 14 | 100 | 44 | |
| 27.HSK63A14WL160 | A63 | 14 | 160 | 44 | |
| 27.HSK63A16WL80 | A63 | 16 | 80 | 48 | |
| 27.HSK63A16WL100 | A63 | 16 | 100 | 48 | |
| 27.HSK63A16WL160 | A63 | 16 | 160 | 48 |
Комплект поставки: включая зажимной винт.
