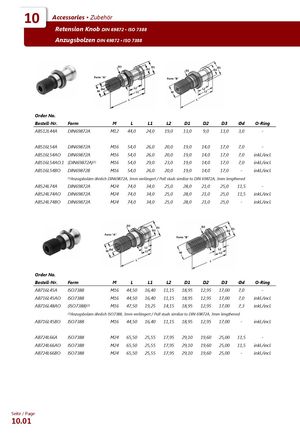

Каталог WSW оправки - страница 147
Навигация
Каталог EWS запчасти
Основной каталог EWS
10 Принадлежности
Стяжной болт DIN 69872 ▪ ISO 7388
| Номер заказа | Форма | M | L | L1 | L2 | D1 | D2 | D3 | Ød | Уплотнительное кольцо |
|---|---|---|---|---|---|---|---|---|---|---|
| AB512L44A | DIN69872A | M12 | 44,0 | 24,0 | 19,0 | 13,0 | 9,0 | 13,0 | 3,0 | - |
| AB516L54A | DIN69872A | M16 | 54,0 | 26,0 | 20,0 | 19,0 | 14,0 | 17,0 | 7,0 | - |
| AB516L54AO | DIN69872A | M16 | 54,0 | 26,0 | 20,0 | 19,0 | 14,0 | 17,0 | 7,0 | вкл. |
| AB516L54AO.1 | (DIN69872A)(1) | M16 | 54,0 | 29,0 | 23,0 | 19,0 | 14,0 | 17,0 | 7,0 | вкл. |
| AB516L54BO | DIN69872B | M16 | 54,0 | 26,0 | 20,0 | 19,0 | 14,0 | 17,0 | - | вкл. |
| AB524L74A | DIN69872A | M24 | 74,0 | 34,0 | 25,0 | 28,0 | 21,0 | 25,0 | 11,5 | - |
| AB524L74AO | DIN69872A | M24 | 74,0 | 34,0 | 25,0 | 28,0 | 21,0 | 25,0 | 11,5 | вкл. |
| AB524L74BO | DIN69872A | M24 | 74,0 | 34,0 | 25,0 | 28,0 | 21,0 | 25,0 | - | вкл. |
(1) Стяжной болт, аналогичный DIN69872A, удлинён на 3 мм.
| Номер заказа | Форма | M | L | L1 | L2 | D1 | D2 | D3 | Ød | Уплотнительное кольцо |
|---|---|---|---|---|---|---|---|---|---|---|
| AB716L45A | ISO7388 | M16 | 44,50 | 16,40 | 11,15 | 18,95 | 12,95 | 17,00 | 7,0 | - |
| AB716L45AO | ISO7388 | M16 | 44,50 | 16,40 | 11,15 | 18,95 | 12,95 | 17,00 | 7,0 | вкл. |
| AB716L48AO | (ISO7388)(2) | M16 | 47,50 | 19,25 | 14,15 | 18,95 | 12,95 | 17,00 | 7,3 | вкл. |
| AB716L45BO | ISO7388 | M16 | 44,50 | 16,40 | 11,15 | 18,95 | 12,95 | 17,00 | - | вкл. |
| AB724L66A | ISO7388 | M24 | 65,50 | 25,55 | 17,95 | 29,10 | 19,60 | 25,00 | 11,5 | - |
| AB724L66AO | ISO7388 | M24 | 65,50 | 25,55 | 17,95 | 29,10 | 19,60 | 25,00 | 11,5 | вкл. |
| AB724L66BO | ISO7388 | M24 | 65,50 | 25,55 | 17,95 | 29,10 | 19,60 | 25,00 | - | вкл. |
(2) Стяжной болт, аналогичный ISO7388, удлинён на 3 мм.
