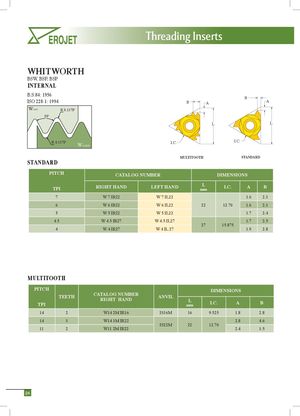

Каталог Erojet резьбонарезные пластины и державки - страница 26
Навигация
Каталог Erojet монолитные резбофрезы
WHITWORTH
BSW, BSF, BSP
INTERNAL
B.S.84: 1956
ISO 228-1: 1994
W R 0.137P NUT 55°
R 0.137P
W
SCREW
STANDARD
B
B A A
L L
I.C. I.C.
MULTITOOTH STANDARD
| PITCH | CATALOG | NUMBER | DIMENSI | ONS | ||
| TPI | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 7 | W 7 IR22 | W 7 IL22 | 1.6 | 2.3 | ||
| 6 | W 6 IR22 | W 6 IL22 | 22 | 12.70 | 1.6 | 2.3 |
| 5 | W 5 IR22 | W 5 IL22 | 1.7 | 2.4 | ||
| 4.5 | W 4.5 IR27 | W 4.5 IL27 | 27 | 15875 | 1.7 | 2.5 |
| 4 | W 4 IR27 | W 4 IL 27 | . | 1.9 | 2.8 |
MULTITOOTH
| PITCH TPI | TEETH | CATALOG NUMBER RIGHT HAND | ANVIL | L mm | DIMEN I.C. | SIONS A | B |
| 14 | 2 | W14 2M IR16 | IS16M | 16 | 9.525 | 1.8 | 2.8 |
| 14 11 | 3 2 | W14 3M IR22 W11 2M IR22 | IS22M | 22 | 12.70 | 2.8 2.4 | 4.6 3.5 |
