Auskragung (L1) bis 7x D 15° L

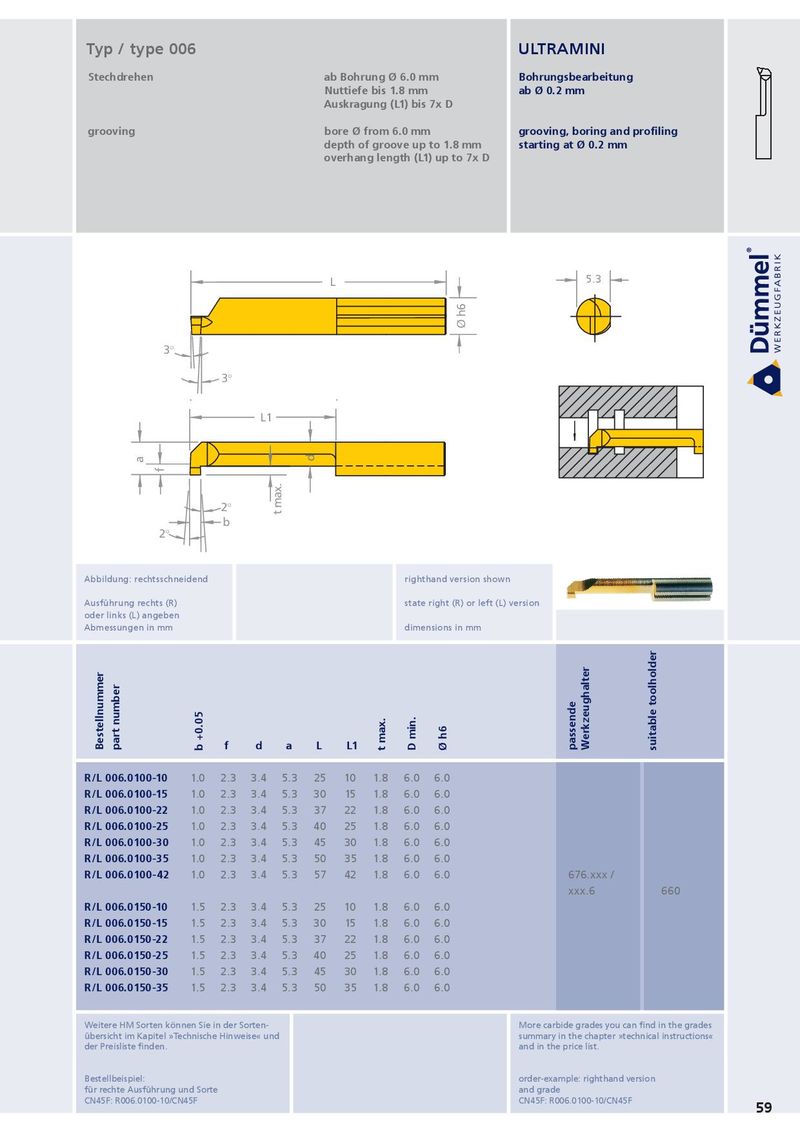

grooving bore Ø from 6.0 mm grooving, boring and profiling 30∞
depth of groove up to 1.8 mm starting at Ø 0.2 mm overhang length (L1) up to 7x D 3° D min. 60° D min.
3° 8° L1 a 5.35.3 15°
| 3° | 3° | L1 | L | Ø h6 | 5.3 5.3 | ||||||
| a f | d | ||||||||||
| 2° Abbildung: rechtsschnei | dend | 2° b | t max. | right | hand version shown | ||||||
| Ausführung rechts (R) | state | right (R) or left (L) v | ersion | ||||||||
| oder links (L) angeben | |||||||||||
| Abmessungen in mm | dime | nsions in mm | r | lder | |||||||
| nummer umber | 5 | de eughalte | le toolho | ||||||||
| Bestell part n | b +0.0 | f | d | a | L | L1 | t max. | D min. | Ø h6 | passen Werkz | suitab |
| R/L 006.0100-10 | 1.0 | 2.3 | 3.4 | 5.3 | 25 | 10 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0100-15 | 1.0 | 2.3 | 3.4 | 5.3 | 30 | 15 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0100-22 | 1.0 | 2.3 | 3.4 | 5.3 | 37 | 22 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0100-25 | 1.0 | 2.3 | 3.4 | 5.3 | 40 | 25 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0100-30 | 1.0 | 2.3 | 3.4 | 5.3 | 45 | 30 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0100-35 | 1.0 | 2.3 | 3.4 | 5.3 | 50 | 35 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0100-42 | 1.0 | 2.3 | 3.4 | 5.3 | 57 | 42 | 1.8 | 6.0 | 6.0 | 676.xxx / 6 | 660 |
| R/L 006.0150-10 | 1.5 | 2.3 | 3.4 | 5.3 | 25 | 10 | 1.8 | 6.0 | 6.0 | xxx. | |
| R/L 006.0150-15 | 1.5 | 2.3 | 3.4 | 5.3 | 30 | 15 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0150-22 | 1.5 | 2.3 | 3.4 | 5.3 | 37 | 22 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0150-25 | 1.5 | 2.3 | 3.4 | 5.3 | 40 | 25 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0150-30 | 1.5 | 2.3 | 3.4 | 5.3 | 45 | 30 | 1.8 | 6.0 | 6.0 | ||
| R/L 006.0150-35 | 1.5 | 2.3 | 3.4 | 5.3 | 50 | 35 | 1.8 | 6.0 | 6.0 |
R0.04
60°
30∞ t max. 30∞
Ansicht vergrößerta view X enlargeda
+0.1 60° 20°
b
4.4 b +0.1 b 60° (4.0) (4.0)
4.4 +0.1 b
X Ansicht vergrößert t max.
S E d1 X d h6 d E s Ansicht vergrößert shank face
Ø Ds Klemmhalter Stirnseite
60° E S
Fräserschaftshank face
| 60° | S | Ansicht X | |
| Klemmhalter Stirnseite | |||
| Fräserschaft |
Weitere HM Sorten können Sie in der Sorten- More carbide grades you can find in the grades Ansicht X
d h6
d h6
d
E s
E s
