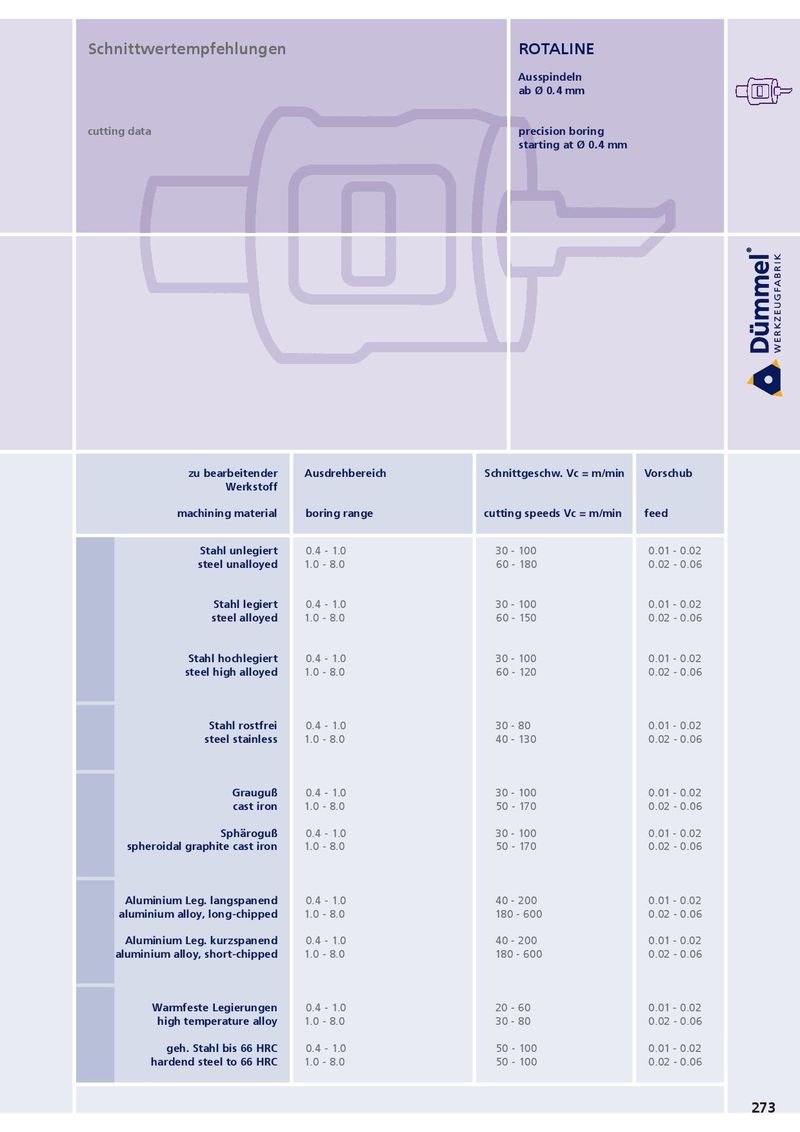

Schnittwertempfehlungen ROTAlinE
cutting data precision boring starting at Ø 0.4 mm
| zu bearbeitender Werkstoff | Ausdrehbereich | Schnittgeschw. Vc = m/min | Vorsc | hub |
| machining material | boring range | cutting speeds Vc = m/min | feed | |
| Stahl unlegiert | 0.4 - 1.0 | 30 - 100 | 0.01 | - 0.02 |
| steel unalloyed | 1.0 - 8.0 | 60 - 180 | 0.02 | - 0.06 |
| Stahl legiert | 0.4 - 1.0 | 30 - 100 | 0.01 | - 0.02 |
| steel alloyed | 1.0 - 8.0 | 60 - 150 | 0.02 | - 0.06 |
| Stahl hochlegiert | 0.4 - 1.0 | 30 - 100 | 0.01 | - 0.02 |
| steel high alloyed | 1.0 - 8.0 | 60 - 120 | 0.02 | - 0.06 |
| Stahl rostfrei | 0.4 - 1.0 | 30 - 80 | 0.01 | - 0.02 |
| steel stainless | 1.0 - 8.0 | 40 - 130 | 0.02 | - 0.06 |
| Grauguß | 0.4 - 1.0 | 30 - 100 | 0.01 | - 0.02 |
| cast iron | 1.0 - 8.0 | 50 - 170 | 0.02 | - 0.06 |
| Sphäroguß | 0.4 - 1.0 | 30 - 100 | 0.01 | - 0.02 |
| spheroidal graphite cast iron | 1.0 - 8.0 | 50 - 170 | 0.02 | - 0.06 |
| Aluminium leg. langspanend | 0.4 - 1.0 | 40 - 200 | 0.01 | - 0.02 |
| aluminium alloy, long-chipped | 1.0 - 8.0 | 180 - 600 | 0.02 | - 0.06 |
| Aluminium leg. kurzspanend | 0.4 - 1.0 | 40 - 200 | 0.01 | - 0.02 |
| aluminium alloy, short-chipped | 1.0 - 8.0 | 180 - 600 | 0.02 | - 0.06 |
| Warmfeste legierungen | 0.4 - 1.0 | 20 - 60 | 0.01 | - 0.02 |
| high temperature alloy | 1.0 - 8.0 | 30 - 80 | 0.02 | - 0.06 |
| geh. Stahl bis 66 HRC | 0.4 - 1.0 | 50 - 100 | 0.01 | - 0.02 |
| hardend steel to 66 HRC | 1.0 - 8.0 | 50 - 100 | 0.02 | - 0.06 |
