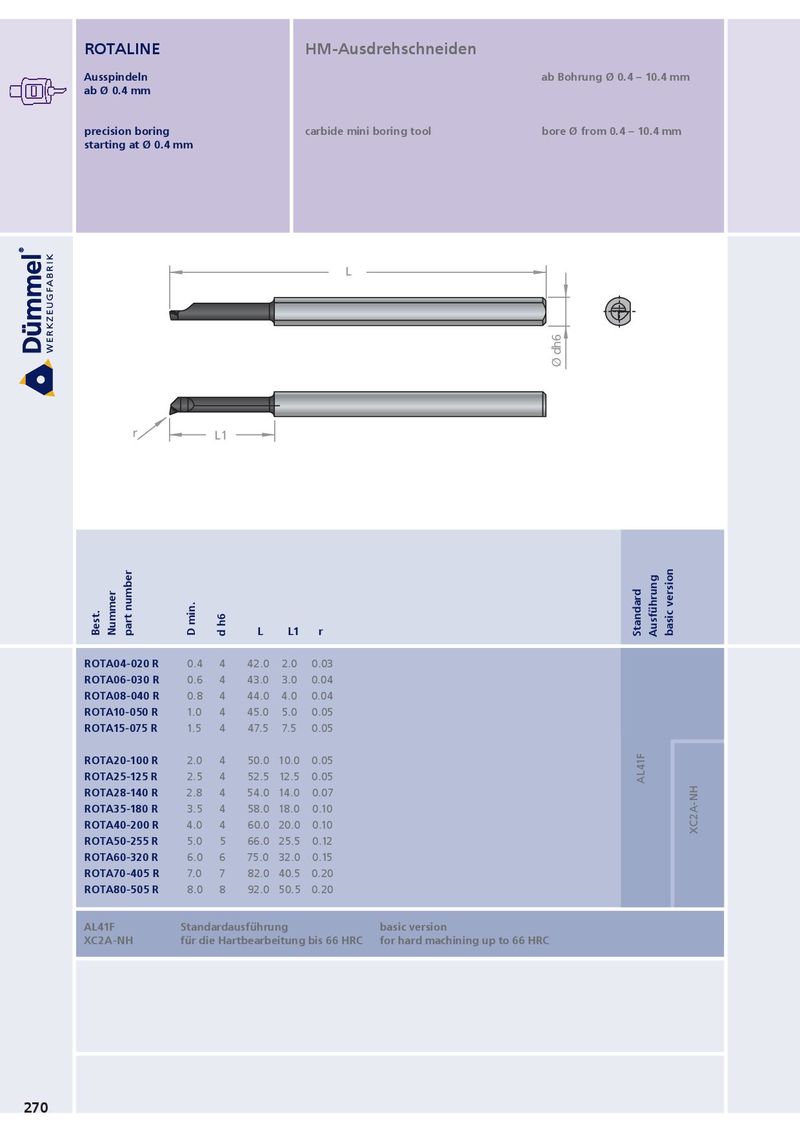

| ROTAlinE Ausspindeln ab Ø 0.4 mm | HM-Ausdrehschneiden ab Bohrung Ø 0.4 – 10.4 mm | ||||
| precision boring starting at Ø 0.4 | mm | carbide mini boring tool bore Ø from 0.4 – 10.4 mm | |||
| r Best. nummer part number | D min. | L1 d h6 | l | l1 | Ø dh6 L Standard Ausführung basic version r |
| ROTA04-020 R ROTA06-030 R | 0.4 0.6 | 4 4 | 42.0 43.0 | 2.0 3.0 | 0.03 0.04 |
| ROTA08-040 R ROTA10-050 R ROTA15-075 R | 0.8 1.0 1.5 | 4 4 4 | 44.0 45.0 47.5 | 4.0 5.0 7.5 | 0.04 0.05 0.05 |
| ROTA20-100 R | 2.0 | 4 | 50.0 | 10.0 | 41F 0.05 |
| ROTA25-125 R ROTA28-140 R ROTA35-180 R | 2.5 2.8 3.5 | 4 4 4 | 52.5 54.0 58.0 | 12.5 14.0 18.0 | AL 2A-NH 0.05 0.07 0.10 |
| ROTA40-200 R | 40 | 4 | 600 | 200 | C 010 |
| ROTA50-255 R | . 5.0 | 5 | . 66.0 | . 25.5 | X . 0.12 |
| ROTA60-320 R | 6.0 | 6 | 75.0 | 32.0 | 0.15 |
| ROTA70-405 R ROTA80-505 R | 7.0 8.0 | 7 8 | 82.0 92.0 | 40.5 50.5 | 0.20 0.20 |
| Al41F XC2A-nH | Stand für di | arda e Har | usführu tbearbe | ng itung | bis 66 HRC basic version for hard machining up to 66 HRC |
60°
Ø 8
