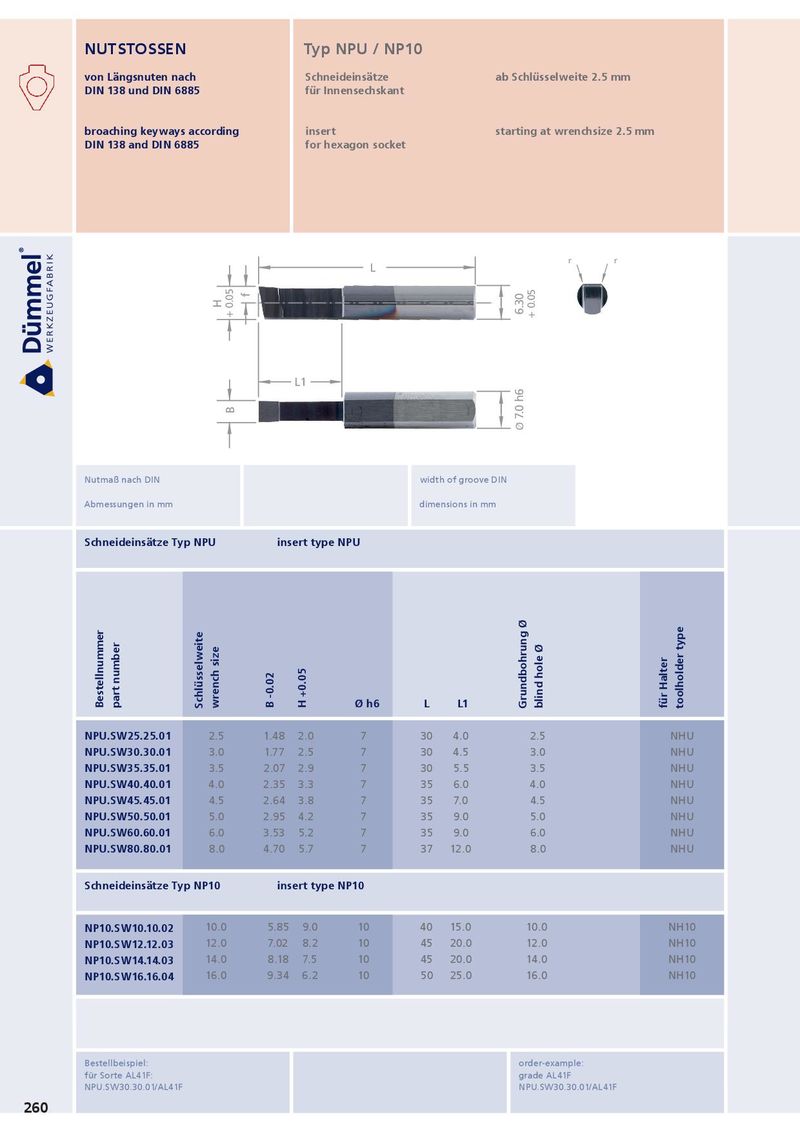

| NUTSTOSSEN von Längsnuten nac DIN 138 und DIN 68 | h 85 | Typ NPU / NP Schneideinsätze für Innensechskan | 10 t | ab Schlüssel | weite 2.5 mm | ||
| broaching keyways DIN 138 and DIN 68 | according 85 | insert for hexagon socke | t | starting at w | renchsize 2.5 mm | ||
| Nutmaß nach DIN Abmessungen in mm | B H + 0.05 f | L L1 | width dime | of groov nsions in m | Ø7.0 h6 6.30 + 0.05 e DIN m | r r | |
| Schneideinsätze Typ | NPU | in | sert type NPU | ||||
| Bestellnummer part number | Schlüsselweite wrench size | B -0.02 | Ø h6 H +0.05 | L | L1 | Grundbohrung Ø blind hole Ø | für Halter toolholder type |
| NPU.SW25.25.01 | 2.5 | 1.48 | 2.0 7 | 30 | 4.0 | 2.5 | NHU |
| NPU.SW30.30.01 | 3.0 | 1.77 | 2.5 7 | 30 | 4.5 | 3.0 | NHU |
| NPU.SW35.35.01 | 3.5 | 2.07 | 2.9 7 | 30 | 5.5 | 3.5 | NHU |
| NPU.SW40.40.01 NPU.SW45.45.01 | 4.0 4.5 | 2.35 2.64 | 3.3 3.8 7 7 | 35 35 | 6.0 7.0 | 4.0 4.5 | NHU NHU |
| NPU.SW50.50.01 | 5.0 | 2.95 | 4.2 7 | 35 | 9.0 | 5.0 | NHU |
| NPU.SW60.60.01 NPU.SW80.80.01 | 6.0 8.0 | 3.53 4.70 | 5.2 5.7 7 7 | 35 37 | 9.0 12.0 | 6.0 8.0 | NHU NHU |
| Schneideinsätze Typ | NP10 | in | sert type NP10 | ||||
| NP10.SW10.10.02 | 10.0 | 5.85 | 9.0 10 | 40 | 15.0 | 10.0 | NH10 |
| NP10.SW12.12.03 | 12.0 | 7.02 | 8.2 10 | 45 | 20.0 | 12.0 | NH10 |
| NP10.SW14.14.03 NP10.SW16.16.04 | 14.0 16.0 | 8.18 9.34 | 7.5 6.2 10 10 | 45 50 | 20.0 25.0 | 14.0 16.0 | NH10 NH10 |
NPU.SW30.30.01/AL41F NPU.SW30.30.01/AL41F
