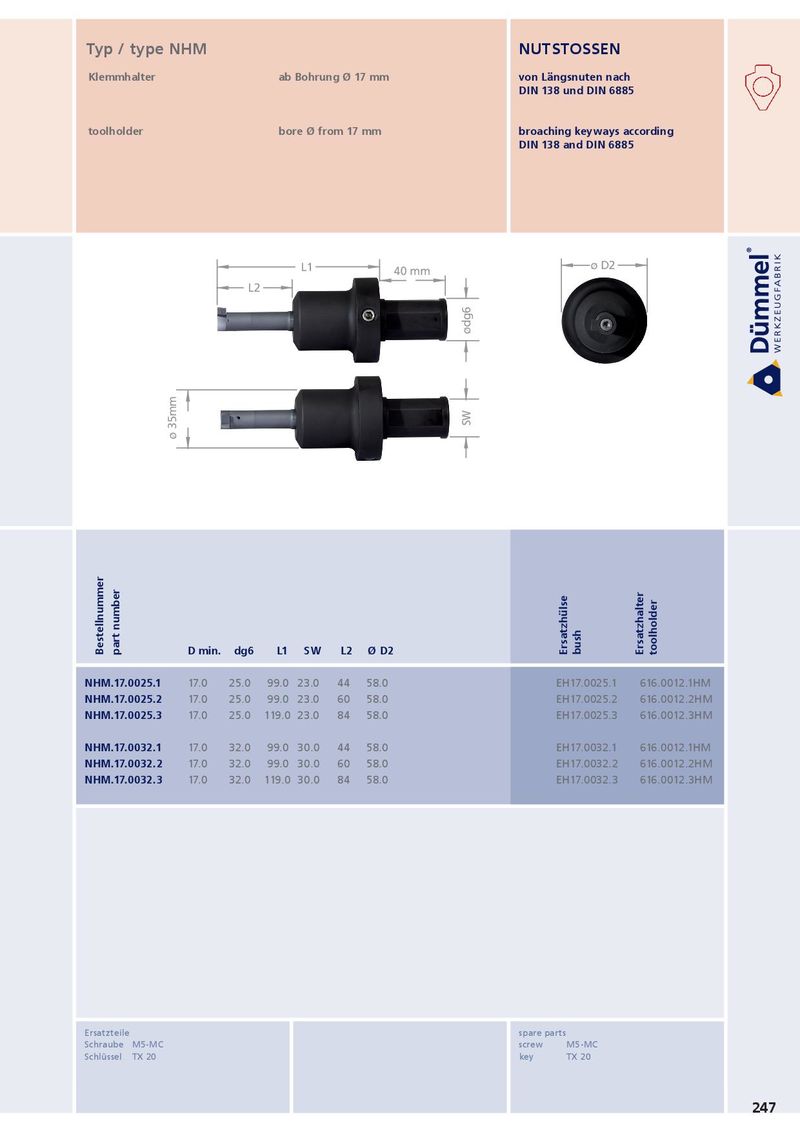

Typ / type NHM NUTSTOSSEN
| toolholder L2 | L2 | bore Ø from 17 mm | broaching keyways according |
| DIN 138 and DIN 6885 |
r r r r
| ø 35mm | L2 | L1 | 40 mm | ødg6 SW | ø D2 | ||
| Bestellnummer part number D min. | dg6 | L1 | SW | L2 | Ø D2 | Ersatzhülse bush Ersatzhalter toolholder | |
| NHM.17.0025.1 17.0 | 25.0 | 99.0 | 23.0 | 44 | 58.0 | EH17.0025.1 616.0012.1HM | |
| NHM.17.0025.2 17.0 | 25.0 | 99.0 | 23.0 | 60 | 58.0 | EH17.0025.2 616.0012.2HM | |
| NHM.17.0025.3 17.0 | 25.0 | 119.0 | 23.0 | 84 | 58.0 | EH17.0025.3 616.0012.3HM | |
| NHM.17.0032.1 17.0 | 32.0 | 99.0 | 30.0 | 44 | 58.0 | EH17.0032.1 616.0012.1HM | |
| NHM.17.0032.2 17.0 | 32.0 | 99.0 | 30.0 | 60 | 58.0 | EH17.0032.2 616.0012.2HM | |
| NHM.17.0032.3 17.0 | 32.0 | 119.0 | 30.0 | 84 | 58.0 | EH17.0032.3 616.0012.3HM |
Schraube M5-MC screw M5-MC
Schlüssel TX 20 key TX 20
