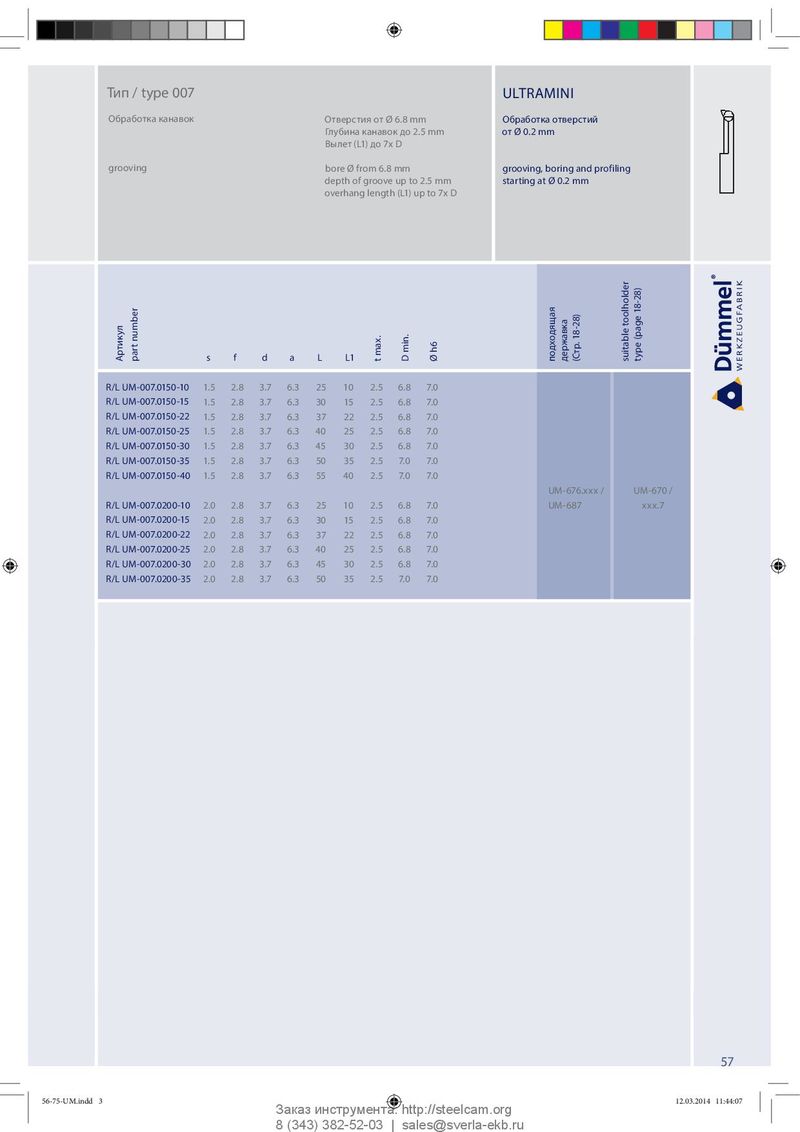

Общий каталог Dümmel 2014 - страница 54
Навигация
Каталог Duemmel общий 2022
Каталог Dümmel дополнение 2017
Общий каталог Dümmel 2015
Каталог Dümmel дополнение 2018
| Обработка канавок | Отверстия от Ø 6.8 mm | Обработка отверстий |
| Глубина канавок до 2.5 mm | от Ø 0.2 mm | |
| Вылет (L1) до 7x D | ||
| grooving | bore Ø from 6.8 mm | grooving, boring and profiling |
depth of groove up to 2.5 mm starting at Ø 0.2 mm overhang length (L1) up to 7x D
| Артикул part number | s | f | d | a | L | L1 | t max. | D min. | Ø h6 | подходящая державка (Стр. 18-28) | suitable toolholder type (page 18-28) |
| R/L UM-007.0150-10 | 1.5 | 2.8 | 3.7 | 6.3 | 25 | 10 | 2.5 | 6.8 | 7.0 | ||
| R/L UM-007.0150-15 | 1.5 | 2.8 | 3.7 | 6.3 | 30 | 15 | 2.5 | 6.8 | 7.0 | ||
| R/L UM-007.0150-22 | 1.5 | 2.8 | 3.7 | 6.3 | 37 | 22 | 2.5 | 6.8 | 7.0 | ||
| R/L UM-007.0150-25 | 1.5 | 2.8 | 3.7 | 6.3 | 40 | 25 | 2.5 | 6.8 | 7.0 | ||
| R/L UM-007.0150-30 | 1.5 | 2.8 | 3.7 | 6.3 | 45 | 30 | 2.5 | 6.8 | 7.0 | ||
| R/L UM-007.0150-35 | 1.5 | 2.8 | 3.7 | 6.3 | 50 | 35 | 2.5 | 7.0 | 7.0 | ||
| R/L UM-007.0150-40 | 1.5 | 2.8 | 3.7 | 6.3 | 55 | 40 | 2.5 | 7.0 | 7.0 | ||
| R/L UM-007.0200-10 | 2.0 | 2.8 | 3.7 | 6.3 | 25 | 10 | 2.5 | 6.8 | 7.0 | -.xxx UM-687 | - xxx.7 |
| R/L UM-007.0200-15 | 2.0 | 2.8 | 3.7 | 6.3 | 30 | 15 | 2.5 | 6.8 | 7.0 | ||
| R/L UM-007.0200-22 | 2.0 | 2.8 | 3.7 | 6.3 | 37 | 22 | 2.5 | 6.8 | 7.0 | ||
| R/L UM-007.0200-25 | 2.0 | 2.8 | 3.7 | 6.3 | 40 | 25 | 2.5 | 6.8 | 7.0 | ||
| R/L UM-007.0200-30 | 2.0 | 2.8 | 3.7 | 6.3 | 45 | 30 | 2.5 | 6.8 | 7.0 | ||
| R/L UM-007.0200-35 | 2.0 | 2.8 | 3.7 | 6.3 | 50 | 35 | 2.5 | 7.0 | 7.0 |
