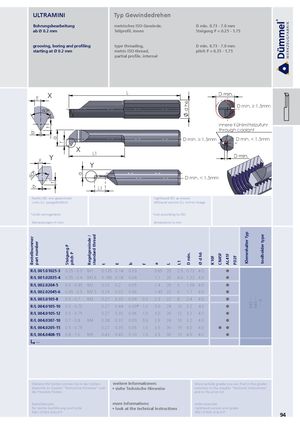

| Typ Gewindedrehen metrisches ISO-Gewinde, Teilprofil, innen ULTRAMINI Bohrungsbearbeitung ab Ø 0.2 mm | D min. 0.73 - 7.0 mm Steigung P = 0.25 - 1.75 |
| type threading, metric ISO-thread, partial profile, internal grooving, boring and profiling starting at Ø 0.2 mm | D min. 0.73 - 7.0 mm pitch P = 0.25 - 1.75 |
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich righthand (R): as shown lefthand version (L): mirro d h6 L L1 a f X 60° b E t X a L1 Y b 60° t E Y D min D m | r image D min. D min. . ≥ 1.5mm in. < 1.5mm D min. ≥ 1.5mm D min. < 1.5mm innere Kühlmittelzufuhr through coolant |
| nicht normgerecht Abmessungen in mm not according to ISO dimensions in mm Bestellnummer part number Steigung P pitch P Regelgewinde / standard thread t E b f a L L1 D min. R/L 001.01025-3 0.25 - 0.3 M1 0.135 0.14 0.03 0.65 20 2.5 0.73 | Ø d h6 K10F CN45F AL41F PD2F Klemmhalter Typ toolholder type 4.0 |
| R/L 001.02035-4 0.35 - 0.4 M1.6 0.189 0.18 0.04 1.1 20 4.0 1.22 | 4.0 |
| R/L 002.0204-5 0.4 - 0.45 M2 0.22 0.2 0.05 1.4 20 5 1.56 R/L 002.02045-6 0.45 - 0.5 M2.5 0.24 0.22 0.06 1.45 22 6 1.7 | 4.0 4.0 |
| R/L 003.0105-8 0.5 - 0.7 M3 0.27 0.33 0.04 0.3 2.3 22 8 2.4 | 5.∙∙∙ 0.∙∙∙ ∙.4 4.0 |
| R/L 004.0105-10 0.5 - 0.75 0.27 0.44 0.09 1.0 3.0 24 10 3.2 R/L 004.0105-12 0.5 - 0.75 0.27 0.35 0.06 1.0 3.0 26 12 3.2 R/L 004.0307-10 0.7 - 0.8 M4 0.38 0.32 0.09 0.9 2.9 24 10 3.2 R/L 004.0205-15 0.5 - 0.75 0.27 0.35 0.06 1.5 3.5 30 15 4.0 R/L 004.0408-15 0.8 - 1.0 M5 0.43 0.45 0.10 1.5 3.5 30 15 4.0 ↳ ∙∙∙ | 64 64 ∙∙ 4.0 4.0 4.0 4.0 4.0 |
