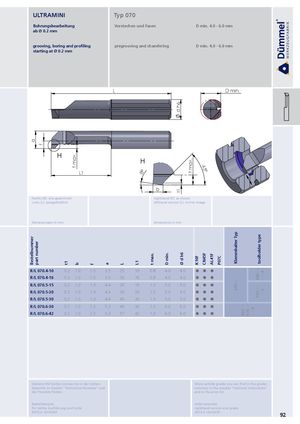

Bohrungsbearbeitung Vorstechen und Fasen D min. 4.0 - 6.0 mm
grooving, boring and profiling pregrooving and chamfering D min. 4.0 - 6.0 mm
starting at Ø 0.2 mm
L D min.
H
H
45°
L1 8°
b
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 070.4-10 | 0.2 | 1.0 | 1.5 | 3.5 | 25 | 10 | 0.8 | 4.0 | 4.0 | | |
| R/L 070.4-16 | 0.2 | 1.0 | 1.5 | 3.5 | 30 | 16 | 0.8 | 4.0 | 4.0 | | 640.∙∙∙ ∙∙∙.4 |
| R/L 070.5-15 | 0.2 | 1.0 | 1.9 | 4.4 | 30 | 15 | 1.0 | 5.0 | 5.0 | | |
| R/L 070.5-20 | 0.2 | 1.0 | 1.9 | 4.4 | 35 | 20 | 1.0 | 5.0 | 5.0 | | |
| 650.∙∙∙ ∙∙∙.5 | |||||||||||
| R/L 070.5-30 | 0.2 | 1.0 | 1.9 | 4.4 | 45 | 30 | 1.0 | 5.0 | 5.0 | | |
| R/L 070.6-30 | 0.2 | 1.0 | 2.3 | 5.3 | 45 | 30 | 1.0 | 6.0 | 6.0 | | |
| R/L 070.6-42 | 0.2 | 1.0 | 2.3 | 5.3 | 57 | 42 | 1.0 | 6.0 | 6.0 | | 660.∙∙∙ 676.∙∙∙ ∙∙∙.6 |
