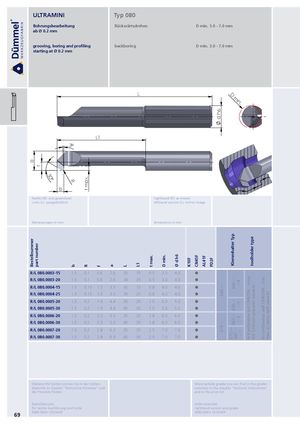

Bohrungsbearbeitung Rückwärtsdrehen D min. 3.0 - 7.0 mm
grooving, boring and profiling backboring D min. 3.0 - 7.0 mm
starting at Ø 0.2 mm
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich R f a b 30° 3° | t max. | L1 | L | rig lef | hthand thand ve | (R): as sh rsion (L | own ): mirror im | age | d h6 D min. | ||
| Bestellnummer part number b Abmessungen in mm | R | f | a | L | L1 | t max. di | D min. mensions | Ø d h6 in mm | K10F CN45F | AL41F PD2F | Klemmhalter Typ toolholder type |
| R/L 080.0003-15 1.5 R/L 080.0003-20 1.5 | 0.1 0.1 | 0.6 0.6 | 2.6 2.6 | 30 34 | 15 20 | 0.5 0.5 | 3.0 3.0 | 4.0 4.0 | | 0.∙∙∙ .4 muss you | |
| R/L 080.0004-15 1.5 R/L 080.0004-25 1.5 | 0.15 0.15 | 1.5 1.5 | 3.5 3.5 | 30 39 | 15 25 | 0.8 0.8 | 4.0 4.0 | 4.0 4.0 | | 645.∙∙∙ 64 ∙∙∙ 00H... erden! 600H... ch! | |
| R/L 080.0005-20 1.5 R/L 080.0005-30 1.5 | 0.2 0.2 | 1.9 1.9 | 4.4 4.4 | 35 45 | 20 30 | 1.0 1.0 | 5.0 5.0 | 5.0 5.0 | | mit UM6 spannt w with UM ith wren 650.∙∙∙ ∙∙∙.5 | |
| R/L 080.0006-20 1.5 | 0.2 | 2.3 | 5.3 | 35 | 20 | 1.8 | 6.0 | 6.0 | | tion l ge ion mp w .∙∙∙ .6 | |
| R/L 080.0006-30 1.5 | 0.2 | 2.3 | 5.3 | 45 | 30 | 1.8 | 6.0 | 6.0 | | bina lüsse binat cla 6.∙∙∙ 660 ∙∙∙ | |
| R/L 080.0007-20 1.5 | 0.2 | 2.8 | 6.3 | 35 | 20 | 2.5 | 7.0 | 7.0 | | Kom t Sch com ve to 67 0.∙∙∙ 7.∙∙∙ ∙∙.7 | |
| R/L 080.0007-30 1.5 | 0.2 | 2.8 | 6.3 | 45 | 30 | 2.5 | 7.0 | 7.0 | | In mi In ha 67 68 ∙ |
69 R080.0003-15/CN45F R080.0003-15/CN45F
