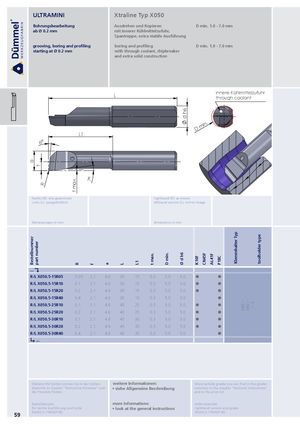

Каталог Duemmel общий 2022 - страница 64
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
Spantreppe, extra stabile Ausführung
grooving, boring and profiling boring and profiling D min. 1.0 - 7.0 mm
starting at Ø 0.2 mm with through coolant, chipbreaker and extra solid construction
| Rechts (R): wie gezeich Links (L): spiegelbildlich R f a 6° | net L1 t max. | 7° | L | righ left | thand (R): hand versi | as shown on (L): mirr d h6 | or image D min. innere Kühlmittelzufuhr through coolant | ||
| Abmessungen in mm Bestellnummer part number ↴ | R | f | a | L | L1 | dim t max. | ensions in D min. | mm Ø d h6 | K10F CN45F AL41F P18C Klemmhalter Typ toolholder type |
| ... R/L X050.5-15R05 R/L X050.5-15R10 R/L X050.5-15R20 R/L X050.5-15R40 | 0.05 0.1 0.2 0.4 | 2.1 2.1 2.1 2.1 | 4.6 4.6 4.6 4.6 | 30 30 30 30 | 15 15 15 15 | 0.3 0.3 0.3 0.3 | 5.0 5.0 5.0 5.0 | 5.0 5.0 5.0 5.0 | ∙∙ ∙∙ |
| R/L X050.5-25R10 | 0.1 | 2.1 | 4.6 | 40 | 25 | 0.3 | 5.0 | 5.0 | 45.∙ 50.∙ ∙∙∙.5 |
| R/L X050.5-25R20 | 0.2 | 2.1 | 4.6 | 40 | 25 | 0.3 | 5.0 | 5.0 | 6 6 |
| R/L X050.5-30R10 | 0.1 | 2.1 | 4.6 | 45 | 30 | 0.3 | 5.0 | 5.0 | |
| R/L X050.5-30R20 | 0.2 | 2.1 | 4.6 | 45 | 30 | 0.3 | 5.0 | 5.0 | |
| R/L X050.5-30R40 ↳ ... | 0.4 | 2.1 | 4.6 | 45 | 30 | 0.3 | 5.0 | 5.0 | |
