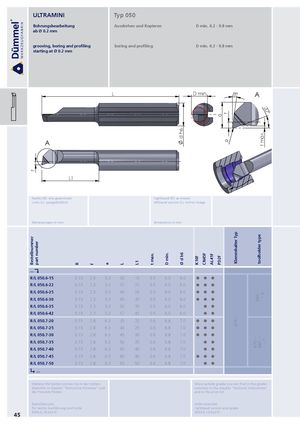

grooving, boring and profiling boring and profiling D min. 0.2 - 9.8 mm

starting at Ø 0.2 mm

A			L					d h6	D min. a	R 8° f	t max. 20° A
Rechts (R): wie geze Links (L): spiegelbild f	ichnet lich L1					righ lefth	thand (R and ver	): as shown sion (L): mi	rror image
Bestellnummer part number Abmessungen in mm	R	f	a	L	L1	t max. dim	D min. ensions i	Ø d h6 n mm	K10F CN45F AL41F PD2F	Klemmhalter Typ	toolholder type
... ↴ R/L 050.6-15	0.15	2.3	5.3	30	15	0.5	6.0	6.0	  
R/L 050.6-22	0.15	2.3	5.3	37	22	0.5	6.0	6.0	  
R/L 050.6-25	0.15	2.3	5.3	40	25	0.5	6.0	6.0	  		0.∙∙∙ ∙.6
R/L 050.6-30	0.15	2.3	5.3	45	30	0.5	6.0	6.0	  		66 ∙∙
R/L 050.6-35	0.15	2.3	5.3	50	35	0.5	6.0	6.0	 
R/L 050.6-42	0.15	2.3	5.3	57	42	0.5	6.0	6.0	 	∙∙∙
R/L 050.7-20	0.15	2.8	6.3	35	20	0.6	6.8	7.0	  	76.
R/L 050.7-25	0.15	2.8	6.3	40	25	0.6	6.8	7.0	  	6
R/L 050.7-30	0.15	2.8	6.3	45	30	0.6	6.8	7.0	  		∙∙ ∙∙
R/L 050.7-35	0.15	2.8	6.3	50	35	0.6	6.8	7.0	 		670.∙ 687.∙ ∙∙∙.7
R/L 050.7-40	0.15	2.8	6.3	55	40	0.6	6.8	7.0	 
R/L 050.7-45	0.15	2.8	6.3	60	45	0.6	6.8	7.0	  
R/L 050.7-50 ↳...	0.15	2.8	6.3	65	50	0.6	6.8	7.0	 
