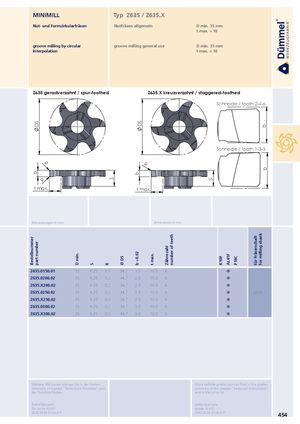

Каталог Duemmel общий 2022

groove milling by circular groove milling general use D min. 35 mm

interpolation t max. = 10

DS t max. b R R S Z635 geradverzahnt / spur-toothed	DS R b S t max. Schneide / to Schneide / to Z635.X kreuzverzahnt / staggered-toothed	b b oth 2-4-6 oth 1-3-5
Abmessungen in mm Bestellnummer part number D min. S R Ø DS	dimensions in mm b +0.02 t max. Zähnezahl number of teeth K10F AL41F P18C	für Fräserschaft for milling shank
Z635.0150.01 35 6.25 0.1 34.7 Z635.0200.02 35 6.25 0.2 34.7 Z635.X200.02 35 6.25 0.2 34.7 Z635.0250.02 35 6.25 0.2 34.7 Z635.X250.02 35 6.25 0.2 34.7	1.5 10.0 6  2.0 10.0 6  2.0 10.0 6  2.5 10.0 6  2.5 10.0 6 	ZH28.∙∙∙
Z635.0300.02 35 6.25 0.2 34.7 Z635.X300.02 35 6.25 0.2 34.7	3.0 10.0 6  3.0 10.0 6 
