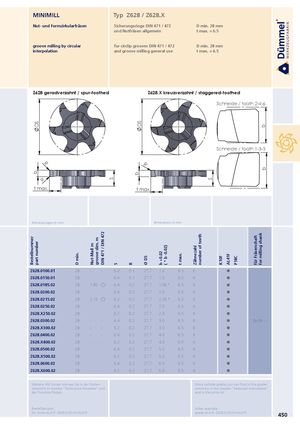

| groove milling by circular | for circlip grooves DIN 471 / 472 | D min. 28 mm |
| interpolation | and groove milling general use | t max. = 6.5 |
| DS t max. b R R S Z628 geradverzahnt / spur-toothed | DS R b t max Z | S . 628.X kreuzverzahnt / stagger | Schnei Schnei ed-too | de / to de / to thed | b b oth 2-4-6 oth 1-3-5 |
| Abmessungen in mm Bestellnummer part number D min. Nut-Maß m groove dim. m DIN 471 / DIN 472 S | R Ø DS | dimensions in mm b +0.02 ( b -0.02) t max. Zähnezahl number of teeth | K10F AL41F | P18C | für Fräserschaft for milling shank |
| Z628.0100.01 28 - - 6.0 | 0.1 27. | 7 1.0 6.5 6 | | ||
| Z628.0150.01 28 - - 6.4 | 0.1 27. | 7 1.5 6.5 6 | | ||
| Z628.0185.02 28 1.85 6.4 | 0.2 27. | 7 1.96 6.5 6 | | ||
| Z628.0200.02 28 - - 6.4 | 0.2 27. | 7 2.0 6.5 6 | | ||
| Z628.0215.02 28 2.15 6.2 | 0.2 27. | 7 2.26 6.5 6 | | ||
| Z628.0250.02 28 - - 6.4 | 0.2 27. | 7 2.5 6.5 6 | | ||
| Z628.X250.02 28 - - 6.2 | 0.2 27. | 7 2.5 6.5 6 | | ||
| Z628.0300.02 28 - - 6.4 | 0.2 27. | 7 3.0 6.5 6 | | ZH28.∙∙∙ | |
| Z628.X300.02 28 - - 6.2 | 0.2 27. | 7 3.0 6.5 6 | | ||
| Z628.0400.02 28 - - 6.4 | 0.2 27. | 7 4.0 6.5 6 | | ||
| Z628.X400.02 28 - - 6.2 | 0.2 27. | 7 4.0 6.5 6 | | ||
| Z628.0500.02 28 - - 6.4 | 0.2 27. | 7 5.0 6.5 6 | | ||
| Z628.X500.02 28 - - 6.2 | 0.2 27. | 7 5.0 6.5 6 | | ||
| Z628.0600.02 28 - - 6.4 Z628.X600.02 28 - - 6.2 | 0.2 27. 0.2 27. | 7 6.0 6.5 6 7 6.0 6.5 6 | |
für Sorte AL41F: Z628.0150.01/AL41F grade AL41F: Z628.0150.01/AL41F 450
