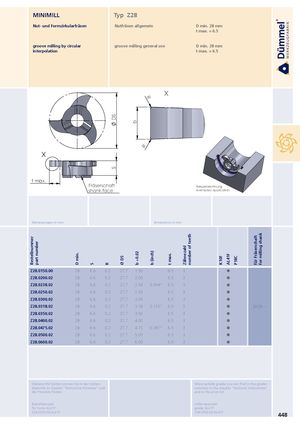

groove milling by circular groove milling general use D min. 28 mm
interpolation t max. = 6.5
| DS t max. S X Fräserschaft shank face | b R | R X | Beispielzeichnung exemplary application | ||
| Bestellnummer part number D min. S R Abmessungen in mm | Ø DS | b +0.02 | b (inch) t max. dimensions in | Zähnezahl number of teeth K10F AL41F P18C mm | für Fräserschaft for milling shank |
| Z28.0150.00 28 6.6 0.2 Z28.0200.02 28 6.6 0.2 Z28.0238.02 28 6.6 0.2 Z28.0250.02 28 6.6 0.2 Z28.0300.02 28 6.6 0.2 Z28.0318.02 28 6.6 0.2 Z28.0350.02 28 6.6 0.2 Z28.0400.02 28 6.6 0.2 Z28.0475.02 28 6.6 0.2 | 27.7 27.7 27.7 27.7 27.7 27.7 27.7 27.7 27.7 | 1.50 2.00 2.39 2.50 3.00 3.18 3.50 4.00 4.75 | 6.5 6.5 0.094" 6.5 6.5 6.5 0.125" 6.5 6.5 6.5 0.187" 6.5 | 3 3 3 3 3 3 3 3 3 | ZH28.∙∙∙ |
| Z28.0500.02 28 6.6 0.2 Z28.0600.02 28 6.6 0.2 | 27.7 27.7 | 5.00 6.00 | 6.5 6.5 | 3 3 |
