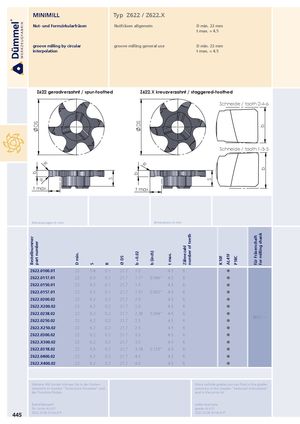

groove milling by circular groove milling general use D min. 22 mm
interpolation t max. = 4.5
Z622 geradverzahnt / spur-toothed Z622.X kreuzverzahnt / staggered-toothed
| DS t max. b R R S | DS R b t ma | S x. Schneide / Schneide / | b b tooth 2-4-6 tooth 1-3-5 | |
| Abmessungen in mm Bestellnummer part number D min. S R | Ø DS | b +0.02 | dimensions in mm b (inch) t max. Zähnezahl number of teeth K10F AL41F P18C | für Fräserschaft for milling shank |
| Z622.0100.01 22 5.8 0.1 Z622.0117.01 22 6.0 0.1 Z622.0150.01 22 6.2 0.1 Z622.0157.01 22 6.2 0.1 Z622.0200.02 22 6.2 0.2 Z622.X200.02 22 6.2 0.2 Z622.0238.02 22 6.2 0.2 Z622.0250.02 22 6.2 0.2 Z622.X250.02 22 6.2 0.2 Z622.0300.02 22 6.2 0.2 Z622.X300.02 22 6.2 0.2 Z622.0318.02 22 5.5 0.2 | 21.7 21.7 21.7 21.7 21.7 21.7 21.7 21.7 21.7 21.7 21.7 21.7 | 1.0 1.17 1.5 1.57 2.0 2.0 2.38 2.5 2.5 3.0 3.0 3.18 | 4.5 6 0.046" 4.5 6 4.5 6 0.062" 4.5 6 4.5 6 4.5 6 0.094" 4.5 6 4.5 6 4.5 6 4.5 6 4.5 6 0.125" 4.5 6 | ZH22.∙∙∙ |
| Z622.0400.02 22 6.2 0.2 Z622.X400.02 22 6.2 0.2 | 21.7 21.7 | 4.0 4.0 | 4.5 6 4.5 6 |
