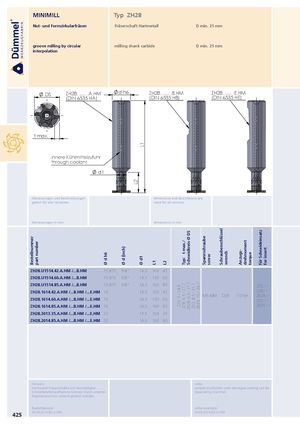

Каталог Duemmel общий 2022 - страница 430

Предыдущая страница Следующая страница

Навигация

groove milling by circular milling shank carbide D min. 25 mm

interpolation

DSZH28. ..... .A.HMd h6ZH28. ..... .B.HMZH28. ..... .E.HM
(DIN 6535 HA)(DIN 6535 HB)(DIN 6535 HE)

t max.

innere Kühlmittelzufuhr

through coolant

d1

Abmessungen und Beschreibungen dimensions and descriptions are gelten für alle Varianten valid for all versions

Abmessungen in mm dimensions in mm

ZH28.U1514.42.A.HM /...B.HM15.8755/8"14.310042
ZH28.U1514.60.A.HM /...B.HM15.8755/8"14.313060
ZH28.U1514.85.A.HM /...B.HM15.8755/8"14.316085Z25.∙∙∙
ZH28.1614.42.A.HM /...B.HM /...E.HMZ28.∙∙∙
1614.310042

M5-MM T20F 7.0 Nm Z628.∙∙∙

ZH28.1614.60.A.HM /...B.HM /...E.HM1614.313060Z32.∙∙∙
ZH28.1614.85.A.HM /...B.HM /...E.HM1614.316085Z635.∙∙∙
ZH28.2013.35.A.HM /...B.HM /...E.HM2013.510435
ZH28.2014.85.A.HM /...B.HM /...E.HM2014.316085
