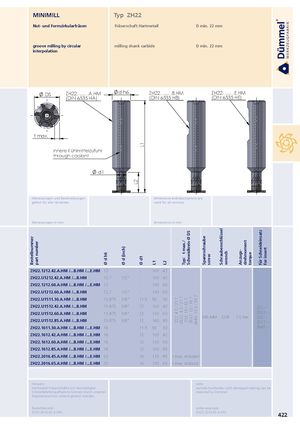

Каталог Duemmel общий 2022 - страница 427
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
groove milling by circular milling shank carbide D min. 22 mm
interpolation
| DS | ZH22. ..... .A.HM | d h6 | ZH22. ..... .B.HM | ZH22. ..... .E.HM |
| (DIN 6535 HA) | (DIN 6535 HB) | (DIN 6535 HE) |
t max.
innere Kühlmittelzufuhr
through coolant
d1
Abmessungen und Beschreibungen dimensions and descriptions are gelten für alle Varianten valid for all versions
Abmessungen in mm dimensions in mm
| ZH22.1212.42.A.HM /...B.HM /...E.HM | 12 | - | 100 | 42 | ||
| ZH22.U1212.42.A.HM /...B.HM | 12.7 | 1/2" | - | 100 | 42 | |
| ZH22.1212.60.A.HM /...B.HM /...E.HM | 12 | - | 130 | 60 | ||
| ZH22.U1212.60.A.HM /...B.HM | 12.7 | 1/2" | - | 130 | 60 | |
| ZH22.U1511.30.A.HM /...B.HM | 15.875 | 5/8" | 11.5 | 90 | 30 | |
| ZH22.U1512.42.A.HM /...B.HM | 15.875 | 5/8" | 12 | 100 | 42 | Z22.∙∙∙ |
| ZH22.U1512.60.A.HM /...B.HM | Z622.∙∙∙ | |||||
| 15.875 | 5/8" | 12 | 130 | 60 |
M5-MM T20F 7.0 Nm Z33.∙∙∙
| ZH22.U1512.85.A.HM /...B.HM | 15.875 | 5/8" 12 | 160 | 85 | Z637.∙∙∙ | |
| ZH22.1611.30.A.HM /...B.HM /...E.HM | 16 | 11.5 | 90 | 30 | Z640.∙∙∙ | |
| ZH22.1612.42.A.HM /...B.HM /...E.HM | 16 | 12 | 100 | 42 | ||
| ZH22.1612.60.A.HM /...B.HM /...E.HM | 16 | 12 | 130 | 60 | ||
| ZH22.1612.85.A.HM /...B.HM /...E.HM | 16 | 12 | 160 | 85 | ||
| ZH22.2016.45.A.HM /...B.HM /...E.HM | 20 | 16 | 110 | 45 | t max. reduziert | |
| ZH22.2016.65.A.HM /...B.HM /...E.HM | 20 | 16 | 130 | 65 | t max. reduced |
ZH22.2016.65.A.HM ZH22.2016.65.A.HM 422
