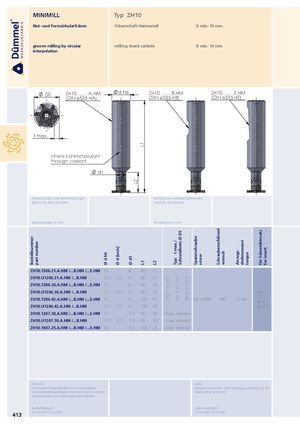

groove milling by circular milling shank carbide D min. 10 mm
interpolation
| DS | ZH10. ..... .A.HM | d h6 | ZH10. ..... .B.HM | ZH10. ..... .E.HM |
| (DIN 6535 HA) | (DIN 6535 HB) | (DIN 6535 HE) |
t max.
innere Kühlmittelzufuhr
through coolant
d1
Abmessungen und Beschreibungen dimensions and descriptions are gelten für alle Varianten valid for all versions
Abmessungen in mm dimensions in mm
| ZH10.1206.21.A.HM /...B.HM /...E.HM | 12 | 6 | 80 | 21 | |||
| ZH10.U1206.21.A.HM /...B.HM | 12.7 | 1/2" | 6 | 80 | 21 | ||
| ZH10.1206.30.A.HM /...B.HM /...E.HM | 12 | 6 | 90 | 30 | |||
| ZH10.U1206.30.A.HM /...B.HM | 12.7 | 1/2" | 6 | 90 | 30 | Z10.∙∙∙ | |
| Z12.∙∙∙ | |||||||
| ZH10.1206.42.A.HM /...B.HM /...E.HM | 12 | 6 | 100 | 42 | 1.2 Nm T8F M2.6-MM Z610.∙∙∙ | ||
| ZH10.U1206.42.A.HM /...B.HM | 12.7 | 1/2" | 6 | 100 | 42 | Z612.∙∙∙ | |
| ZH10.1207.30.A.HM /...B.HM /...E.HM | 12 | 7.3 | 90 | 30 | t max. reduziert | ||
| ZH10.U1207.30.A.HM /...B.HM | 12.7 | 1/2" | 7.3 | 90 | 30 | t max. reduziert | |
| ZH10.1607.25.A.HM /...B.HM /...E.HM | 16 | 7.3 | 100 | 25 | t max. reduced |
