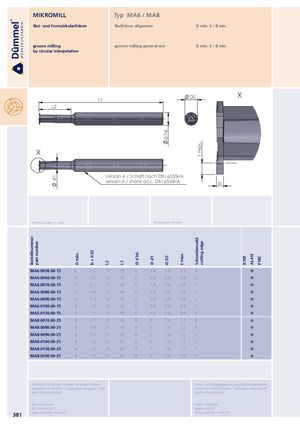

| MIKROMILL Nut- und Formzirkularfräse | n | Typ Nutfräs | MA6 / en allge | MA8 mein | D min. | 6 / 8 mm | ||
| groove milling by circular interpolation | groove | milling | general use | D min. | 6 / 8 mm | |||
| L2 X | L | 1 | d h6 | DS t max. | X | |||
| d1 | Ve ver | rsion A / sion A / | Schaft shank | nach DIN 653 acc. DIN 6535 | 5HA HA | b | ||
| Abmessungen in mm Bestellnummer part number D min. | b ± 0.02 | L2 | L1 | Ø d h6 | dimensions in Ø d1 Ø DS | mm t max. | Schneidenzahl cutting edge | K10F AL41F P18C |
| MA6.0050.00-15 6 | 0.5 | 15 | 58 | 6 | 3.8 5.8 | 0.8 | 3 | |
| MA6.0060.00-15 6 | 0.6 | 15 | 58 | 6 | 3.8 5.8 | 0.8 | 3 | |
| MA6.0070.00-15 6 | 0.7 | 15 | 58 | 6 | 3.8 5.8 | 0.8 | 3 | |
| MA6.0080.00-15 6 | 0.8 | 15 | 58 | 6 | 3.8 5.8 | 0.8 | 3 | |
| MA6.0090.00-15 6 | 0.9 | 15 | 58 | 6 | 3.8 5.8 | 0.8 | 3 | |
| MA6.0100.00-15 6 | 1.0 | 15 | 58 | 6 | 3.8 5.8 | 0.8 | 3 | |
| MA6.0150.00-15 6 | 1.5 | 15 | 58 | 6 | 3.8 5.8 | 0.8 | 3 | |
| MA8.0070.00-25 8 MA8.0080.00-25 8 | 0.7 0.8 | 25 25 | 68 68 | 8 8 | 5 7.8 5 7.8 | 1.2 1.2 | 3 3 | |
| MA8.0090.00-25 8 | 0.9 | 25 | 68 | 8 | 5 7.8 | 1.2 | 3 | |
| MA8.0100.00-25 8 | 1.0 | 25 | 68 | 8 | 5 7.8 | 1.2 | 3 | |
| MA8.0150.00-25 8 MA8.0200.00-25 8 | 1.5 2.0 | 25 25 | 68 68 | 8 8 | 5 7.8 5 7.8 | 1.2 1.2 | 3 3 | |
381 MA6.0050.00-15/AL41F MA6.0050.00-15/AL41F
