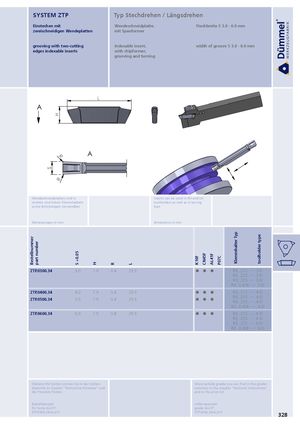

Каталог Duemmel общий 2022 - страница 333

SYSTEM ZTP Typ Stechdrehen / Längsdrehen

grooving with two-cutting indexable insert, width of groove S 3.0 - 6.0 mm

edges indexable inserts with chipformer, grooving and turning

L

A

R A

R

Wendeschneidplatten sind in inserts can be used in RH and LH rechten und linken Klemmhaltern toolholders as well as in boring sowie Bohrstangen verwendbar bars

Abmessungen in mm dimensions in mm

R/L .212. ∙∙∙∙ .2-D R/L .220. ∙∙∙∙ .2-D R/L .225. ∙∙∙∙ .2-D R/L .212. ∙∙∙∙ .3-D R/L .220. ∙∙∙∙ .3-D R/L .225. ∙∙∙∙ .3-D R/L .212. ∙∙∙∙ .4-D R/L .220. ∙∙∙∙ .4-D R/L .225. ∙∙∙∙ .4-D

ZTP.0300.34

ZTP.0400.34 ZTP.0500.34 ZTP.0600.34

3.0

4.0 5.0 6.0

7.9

7.9 7.9 7.5

0.4

0.4 0.4 0.8

29.9

29.9 29.9 29.9

R/L .212. ∙∙∙∙ .3-D R/L .220. ∙∙∙∙ .3-D R/L .225. ∙∙∙∙ .3-D R/L .0.428. ∙∙∙∙ .3-D R/L .212. ∙∙∙∙ .4-D R/L .220. ∙∙∙∙ .4-D R/L .225. ∙∙∙∙ .4-D R/L .0.428. ∙∙∙∙ .4-D R/L .212. ∙∙∙∙ .6-D R/L .220. ∙∙∙∙ .6-D R/L .225. ∙∙∙∙ .6-D R/L .0.428. ∙∙∙∙ .6-D

ZTP.0300.34/AL41F ZTP.0300.34/AL41F 328
